nVent HOFFMAN P2P206G

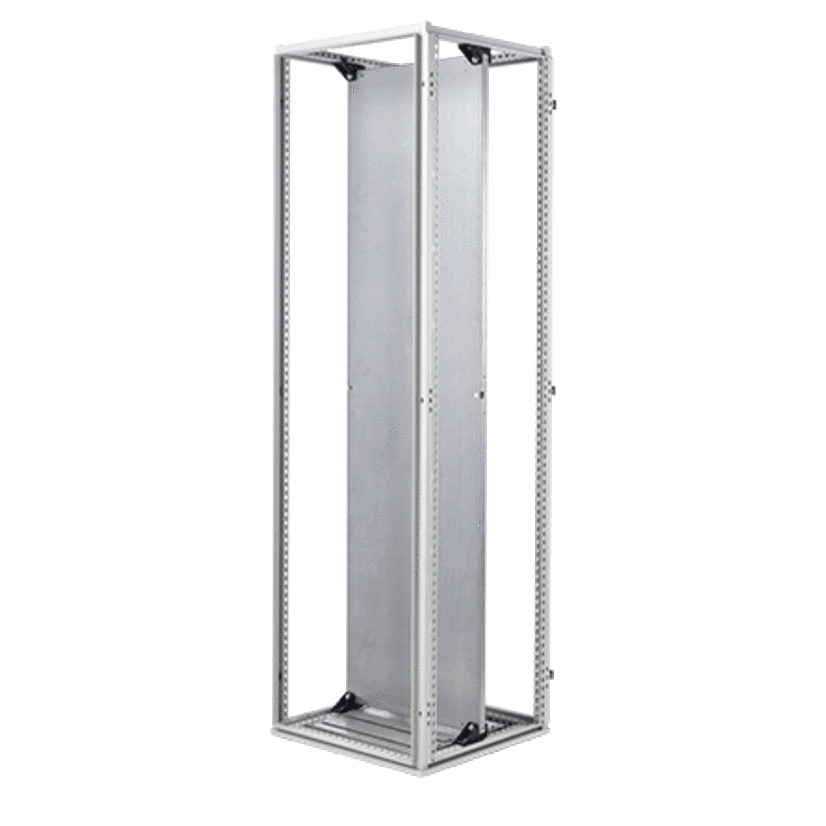

Hoffman Proline G2 P2P206G P40 Conductive Rear Mount Full Sub Panel, 75.1 in H x 20.8 in W, For Use With 2000 mm H x 600 mm W Frames, Steel
nVent HOFFMAN P2P206G
Hoffman Proline G2 P2P206G P40 Conductive Rear Mount Full Sub Panel, 75.1 in H x 20.8 in W, For Use With 2000 mm H x 600 mm W Frames, SteelNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hoffman PROLINE G2 Full Sub Panel, Conductive Rear Mount, Series: P40, 20.8 in Width, 75.1 in Height, For Use With: 2000 mm H x 600 mm W Frames, Steel, Galvanized
Attributes
Documents
Applications
Included
Features
Attributes
Country of OriginMX
FinishGalvanized
GTIN783510324384
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSteel
Package TypeEACH
SeriesP40
Size75.1 in H
Suitable For Use With2000 mm H x 600 mm W Frames
TypeConductive Rear Mount
Applications
Used to load the subpanel horizontally, sides of the enclosure
Included
(4) Sets of EZ-Load Glide Blocks, (4) BV-M6 Fasteners and (4) M12 Hex Bolts
Features
- High space efficiency ratio (HxW of subpanel)/(HxW of frame) of 84 percent
- Subpanels greater than 1000mm wide are 11 ga (3.0 mm) mild steel, while subpanels 100mm or narrower are 12 ga (2.5mm); conductive or white painted finish available
- Subpanels can be mounted at any depth in 25-mm increments (front to back); accommodates back-to-back and fully recessed rear positions
- Accommodates five loading options - vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
