nVent HOFFMAN P2P1810G

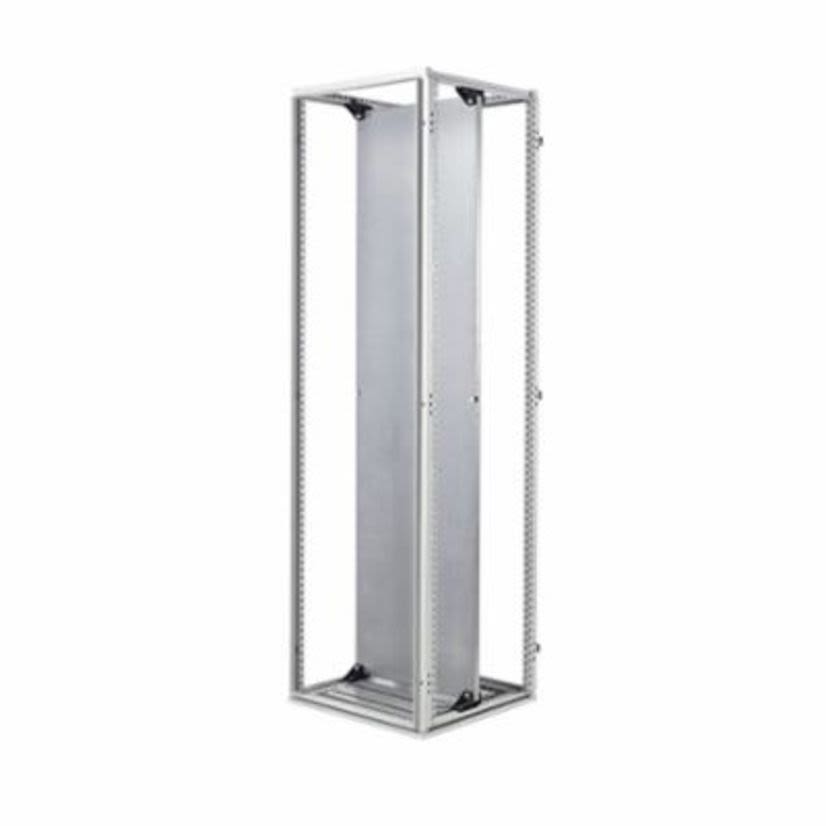

Hoffman Proline G2 P2P1810G P40 Conductive Rear Mount Full Sub Panel, 67.2 in H x 36-1/2 in W, For Use With 1800 mm H x 1000 mm W Frames, Steel
nVent HOFFMAN P2P1810G
Hoffman Proline G2 P2P1810G P40 Conductive Rear Mount Full Sub Panel, 67.2 in H x 36-1/2 in W, For Use With 1800 mm H x 1000 mm W Frames, SteelNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hoffman PROLINE G2 Full Sub Panel, Conductive Rear Mount, Series: P40, 36-1/2 in Width, 67.2 in Height, For Use With: 1800 mm H x 1000 mm W Frames, Steel, Galvanized
Attributes
Documents
Applications
Included
Features
Attributes
Country of OriginMX
FinishGalvanized
ManufacturernVent
MaterialSteel
SeriesP40
Size67.2 in H
Suitable For Use With1800 mm H x 1000 mm W Frames
TypeConductive Rear Mount
Type / StyleConductive Rear Mount
Documents
Applications
Used to load the subpanel horizontally, sides of the enclosure
Included
(4) Sets of EZ-Load Glide Blocks, (4) BV-M6 Fasteners and (4) M12 Hex Bolts
Features
- High space efficiency ratio (HxW of subpanel)/(HxW of frame) of 84 percent
- Subpanels greater than 1000mm wide are 11 ga (3.0 mm) mild steel, while subpanels 100mm or narrower are 12 ga (2.5mm); conductive or white painted finish available
- Subpanels can be mounted at any depth in 25-mm increments (front to back); accommodates back-to-back and fully recessed rear positions
- Accommodates five loading options - vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
