nVent HOFFMAN P2K2086

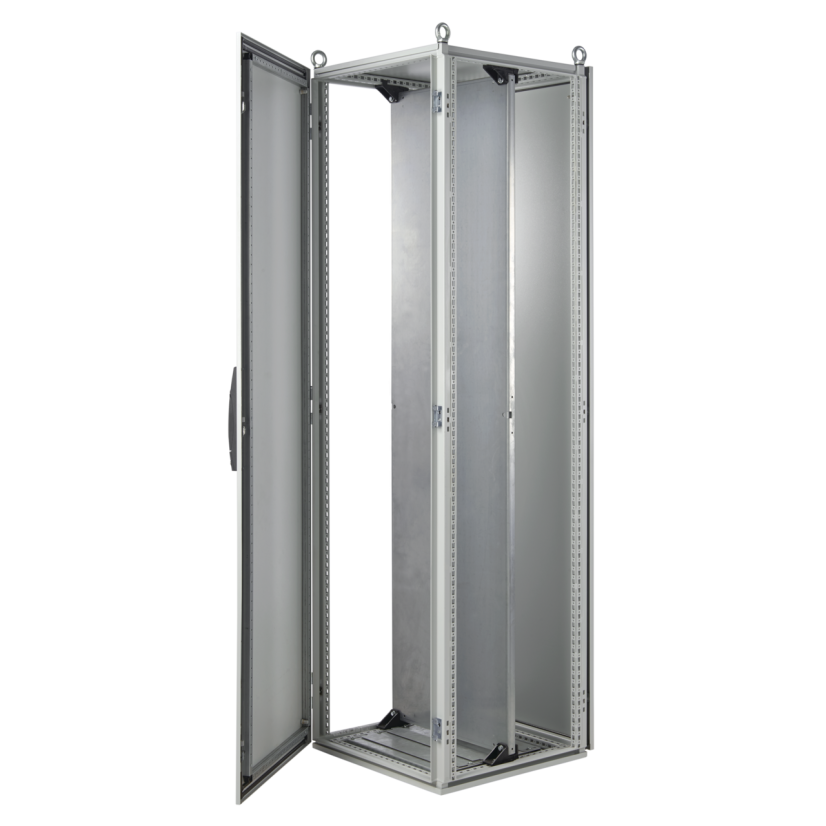

Hoffman ProLine P2K2086 P41 Industrial Enclosure, 31-1/2 in W x 23.6 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN P2K2086
Hoffman ProLine P2K2086 P41 Industrial Enclosure, 31-1/2 in W x 23.6 in D, NEMA 12/IP55 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #P2K2086
Werner Part #4100620
UPC783510320621
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #P2K2086
Werner Part #4100620
UPC783510320621
Product Description
Hoffman ProLine Industrial Enclosure, Series: P41, 31-1/2 in Width, 23.6 in Depth, NEMA 12/IP55, Solid Rear Cover, 75 x 20.7 in Panel, Keyed Lock, Panel Mount, Steel, Light Gray
Attributes
Documents
Included
Features
Specifications
Attributes
ColorLight Gray
Country of OriginMX
Cover TypeSolid Rear
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSteel
Mounting TypePanel
NEMA RatingNEMA 12/IP55
Package Height84 in
Package Length29.75 in
Package TypeEACH
Package Volume66216.96 cu-in
Package Weight346 lb
Package Width26.5 in
Panel Size75 x 20.7 in
SeriesP41
Type / StyleEnclosure
Documents
Included
Frame, Solid Door, Handle, Keylock, Solid Top, Solid Rear Cover, Full Mounting Subpanel, Gland Plate, (4) Lifting Eyes
Features
- E' version right hinged and double bit insert key lock
- 12 ga, roll formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- EZ-load glide blocks which accommodate five loading methods
- Galvanized duro stand gland plate
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel; enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combina
- Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant
- Door bar system present on all doors (including window doors)
- Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
Specifications
Keyed
