nVent HOFFMAN N280416G102

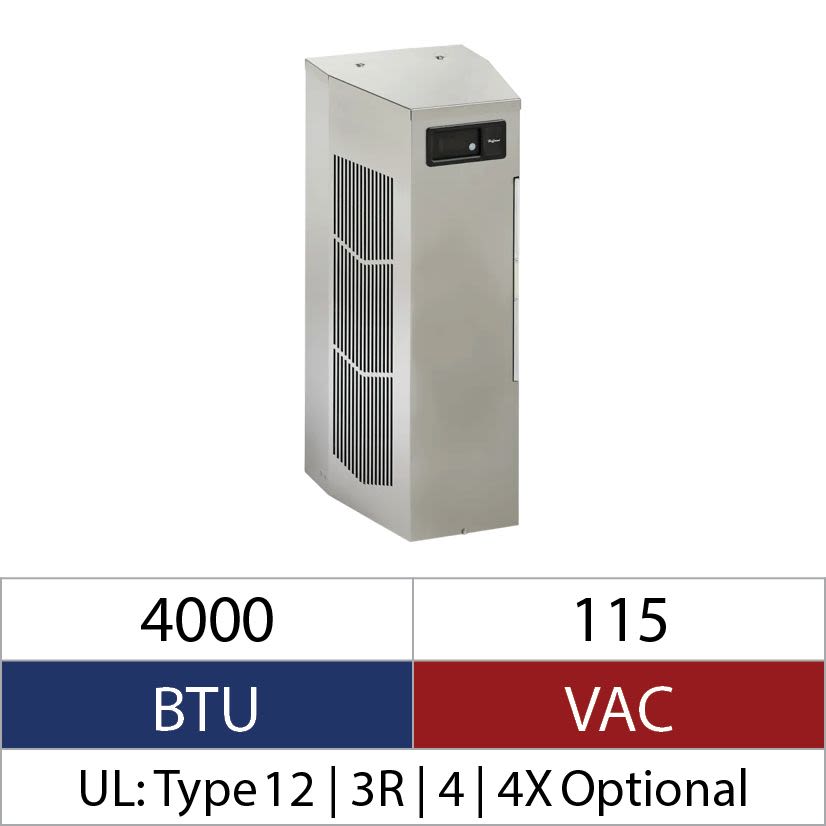

Hoffman Spectracool N280416G102 MCLG Outdoor Narrow Enclosure Air Conditioner, 115 V AC, 10 A, 50/60 Hz, NEMA 4X Enclosure, 4000 Btu/hr
nVent HOFFMAN N280416G102
Hoffman Spectracool N280416G102 MCLG Outdoor Narrow Enclosure Air Conditioner, 115 V AC, 10 A, 50/60 Hz, NEMA 4X Enclosure, 4000 Btu/hrNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hoffman Spectracool Enclosure Air Conditioner, Outdoor Narrow, Series: MCLG, 115 V AC, 10 A, 1172 W, 50/60 Hz, 4000 Btu/hr Capacity, NEMA 4X, -40 to 55 deg C, Ceiling Mount, 304 Stainless Steel, Light Gray, 28 in H x 11-1/2 in W x 14 in D
Attributes
Documents
Applications
Features
Attributes
Amps10 A
BABA CompliantYes
CapacityRange: 4000 Btu/hr
Capacity Range4000 Btu/hr
ColorLight Gray
Country of OriginUS
Dimensions28 in H x 11-1/2 in W x 14 in D
Enclosure TypeNEMA 4X
Frequency Rating50/60 Hz
ManufacturernVent
Material304 Stainless Steel
Mounting TypeCeiling
Package Height30 in
Package Length18 in
Package TypePIECE
Package Volume7032.96 cu-in
Package Weight85 lb
Package Width13 IN
Power Rating1172 W
SeriesMCLG
Temperature Rating-40 to 55 deg C
TypeOutdoor Narrow
Type / StyleOutdoor Narrow
Voltage115 VAC
Voltage Rating115 V AC
Documents
Applications
Industrial Automation, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense System Applications
Features
- Narrow design accommodates 12 in (300-mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes - Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Galvanized sheet-metal cover for rugged factory and outdoor environments
