nVent HOFFMAN N160116G050

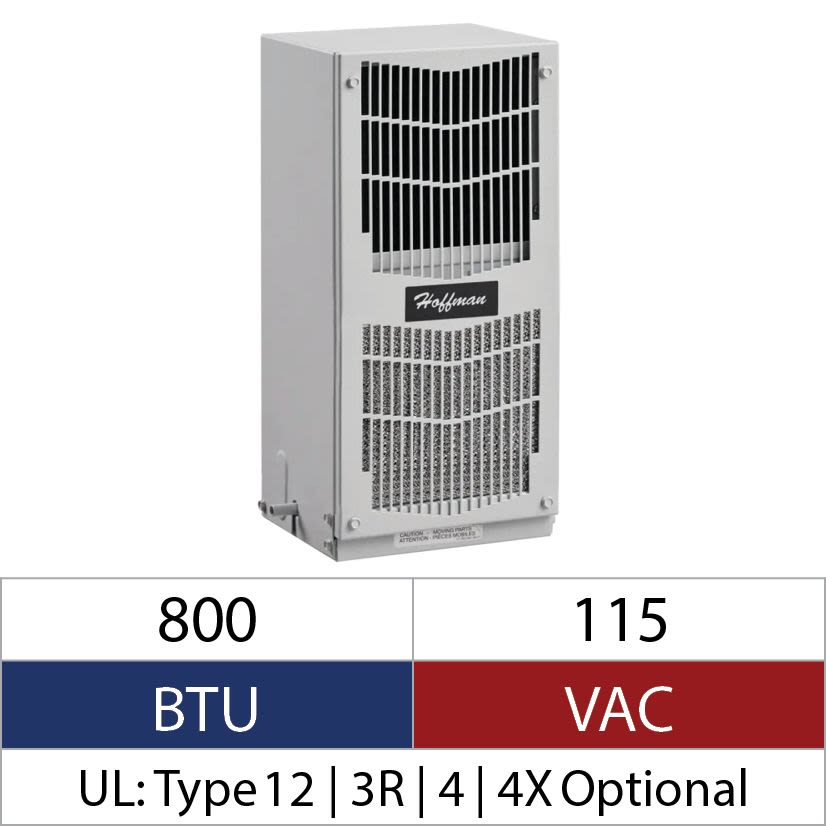

Hoffman Spectracool N160116G050 MCL Indoor/Outdoor Enclosure Air Conditioner, 115 V AC, 3.6/3.5 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 800 Btu/hr
nVent HOFFMAN N160116G050
Hoffman Spectracool N160116G050 MCL Indoor/Outdoor Enclosure Air Conditioner, 115 V AC, 3.6/3.5 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 800 Btu/hrOut of Stockmore info
|
BrandnVent HOFFMAN
MFG #N160116G050
Werner Part #4136109
UPC783510344375
Out of Stockmore info
|
BrandnVent HOFFMAN
MFG #N160116G050
Werner Part #4136109
UPC783510344375
Product Description
Hoffman Spectracool Enclosure Air Conditioner, Indoor/Outdoor, Series: MCL, 115 V AC, 3.6/3.5 A, 234 W, 50/60 Hz, 800 Btu/hr Capacity Range, NEMA 3R/4/12, Basic Mechanical Thermostat Control, Terminal, -40 to 131 deg F, Flanged Mount, Galvanized Sheet Metal, Light Gray, 16.51 in H x 7.52 in W x 6.3 in D
Attributes
Documents
Applications
Included
Features
Attributes
Amps3.6/3.5 A
BABA CompliantYes
CapacityRange: 800 Btu/hr
Capacity Range800 Btu/hr
ColorLight Gray
Connection TypeTerminal
Control TypeBasic Mechanical Thermostat
Country of OriginUS
Dimensions16.51 in H x 7.52 in W x 6.3 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialGalvanized Sheet Metal
Mounting TypeFlanged
Package Height19.7 in
Package Length12 in
Package TypePIECE
Package Volume2833.92 cu-in
Package Weight30.2 lb
Package Width12 in
Power Rating234 W
SeriesMCL
Temperature Rating-40 to 131 deg F
TypeIndoor/Outdoor
Type / StyleIndoor/Outdoor
Voltage115 VAC
Voltage Rating115 V AC
Documents
Applications
Industrial Automation, Wastewater Treatment Systems, Package Handling Equipment, Security and Defense System Applications
Included
Heater Strip, Power-Off Relay, Malfunction Switch, Compressor Heater, 1300 W Enclosure Heater
Features
- Narrow design accommodates 12 in (300-mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Advanced Corrosion Protection Level 2 (ACP L2) Protection Includes - Everything that was coated in ACP L1, plus protective coatings applied to the evaporator (interior facing) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Energy efficient rotary compressor on N36 and N43 models
- Galvanized sheet-metal cover for rugged factory and outdoor environments
