nVent HOFFMAN HF0424413

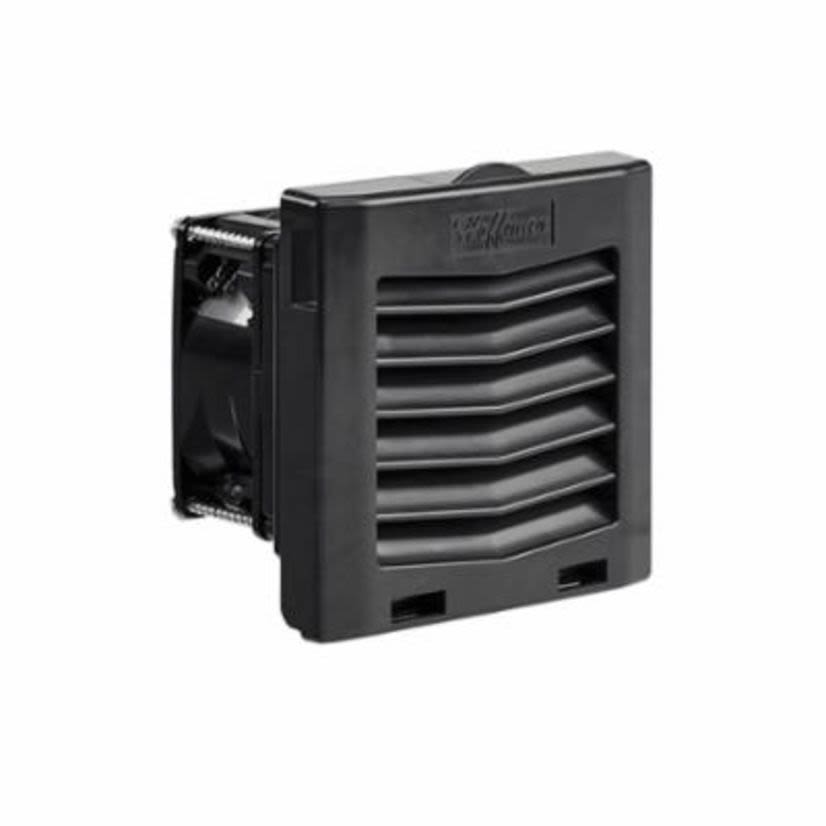

Hoffman HF0424413 MCLF Filter Fan, 24 V DC, 0.14 A, 3.4 W, 21 cfm, NEMA 12/IP54 Enclosure
nVent HOFFMAN HF0424413
Hoffman HF0424413 MCLF Filter Fan, 24 V DC, 0.14 A, 3.4 W, 21 cfm, NEMA 12/IP54 EnclosureNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #HF0424413
Werner Part #4131507
UPC783510342685
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #HF0424413
Werner Part #4131507
UPC783510342685
Product Description
Hoffman Filter Fan, Series: MCLF, 24 V DC, 0.14 A, 3.4 W, 34/36 dB, 21 cfm, 2100 rpm, Side Mount, ABS Grille, NEMA 12/IP54, 4.42 in H x 4.44 in W x 3.15 in D
Attributes
Documents
Applications
Features
Attributes
Air Flow Rate21 cfm
Amps0.14 A
Country of OriginCN
Dimensions4.42 in H x 4.44 in W x 3.15 in D
Enclosure TypeNEMA 12/IP54
ManufacturernVent
Mounting TypeSide
Package TypePIECE
Power Rating3.4 W
SeriesMCLF
Sound Level34/36 dB
Speed2100 rpm
Type / StyleFilter Fan
Voltage24 VDC
Voltage Rating24 V DC
Documents
Applications
Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls and Wind Energy Systems Applications
Features
- Click-Fit design quickly installs into enclosure wall, no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 in (102 mm) to 13 in (325 mm)
