nVent HOFFMAN HB160826G040

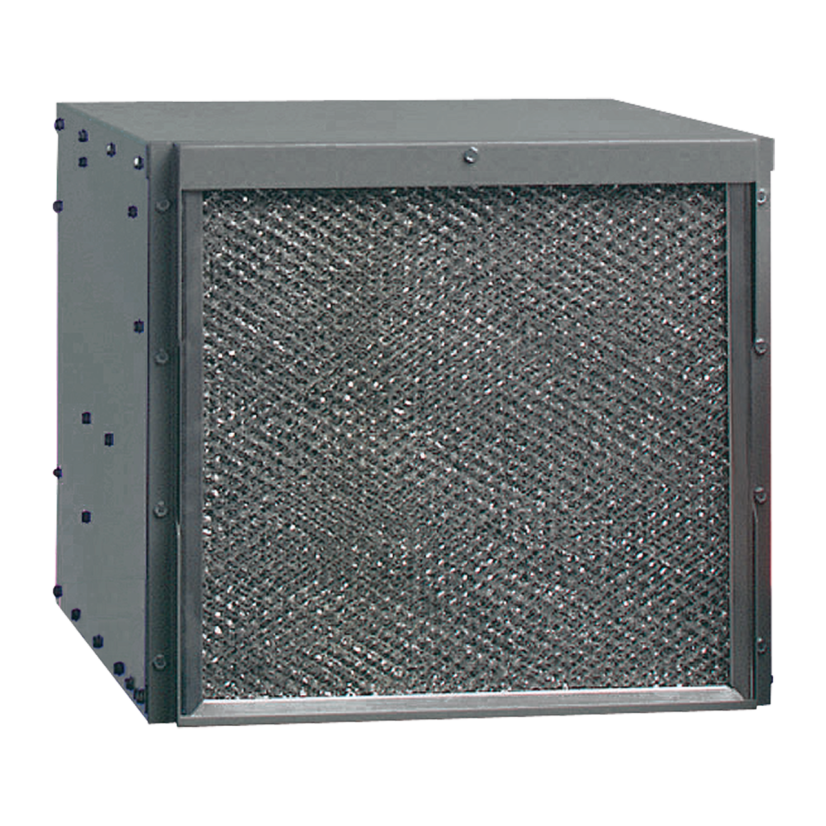

Hoffman Genesis HB160826G040 MCL 1-Phase Indoor Sealed Enclosure Air Conditioner, 230 V AC, 9.3 A, 50/60 Hz, NEMA 12 Enclosure, 8000 Btu/hr
nVent HOFFMAN HB160826G040
Hoffman Genesis HB160826G040 MCL 1-Phase Indoor Sealed Enclosure Air Conditioner, 230 V AC, 9.3 A, 50/60 Hz, NEMA 12 Enclosure, 8000 Btu/hrNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hoffman Genesis Sealed Enclosure Air Conditioner, 1-Phase Indoor, Series: MCL, 230 V AC, 9.3 A, 2344 W, 50/60 Hz, 8000 Btu/hr Capacity, NEMA 12, Mechanical Thermostat Control, Plug, 50 to 125 deg F, Top Mount, Sheet Metal, Gray, 15.25 in H x 17 in W x 25.19 in D
Attributes
Documents
Applications
Included
Features
Attributes
Amps9.3 A
BABA CompliantYes
CapacityRange: 8000 Btu/hr
Capacity Range8000 Btu/hr
ColorGray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions15.25 in H x 17 in W x 25.19 in D
Enclosure TypeNEMA 12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSheet Metal
Mounting TypeTop
Power Rating2344 W
SeriesMCL
Temperature Rating50 to 125 deg F
Type1-Phase Indoor
Type / Style1-Phase Indoor
Voltage230 VAC
Voltage Rating230 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Security and Defense System Applications
Included
Mounting Hardware, Gasket and User Manual
Features
- R134a and R407c refrigerant
- Models for 115, 230 and 460 single-phase VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Every unit functionally tested before shipping
