nVent HOFFMAN G280446G051

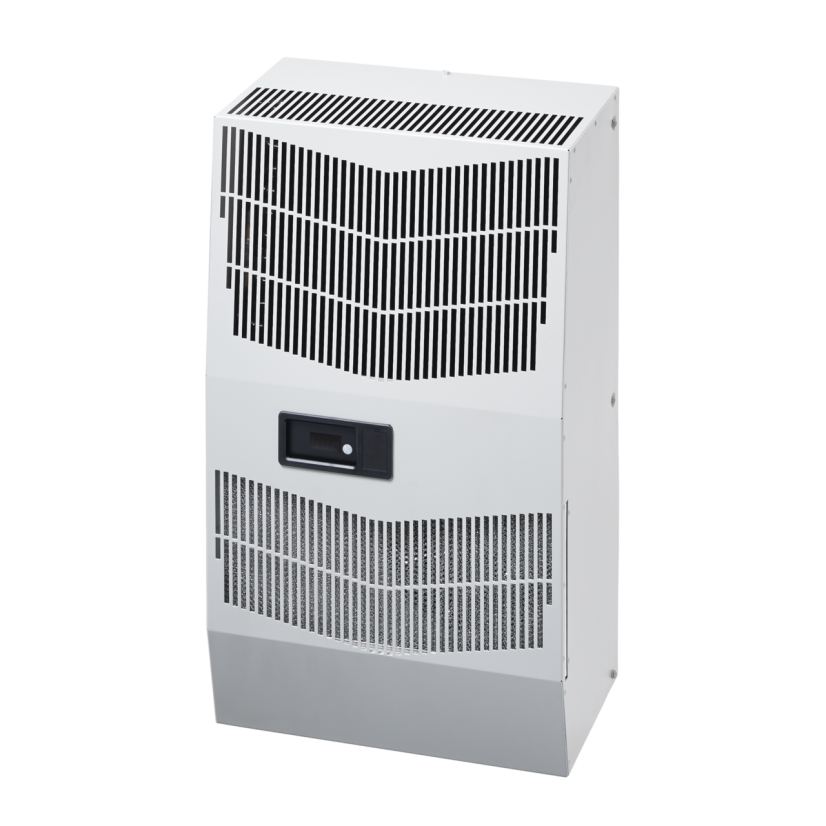

nVent HOFFMAN Spectracool G280446G051 MCLG 3-Phase Indoor Enclosure Air Conditioner, 460 V AC, 1.3/1.4 A, 50/60 Hz, NEMA 4X Enclosure, 4900 Btu/hr
nVent HOFFMAN G280446G051
nVent HOFFMAN Spectracool G280446G051 MCLG 3-Phase Indoor Enclosure Air Conditioner, 460 V AC, 1.3/1.4 A, 50/60 Hz, NEMA 4X Enclosure, 4900 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #G280446G051
Werner Part #3931288
UPC783510210823
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #G280446G051
Werner Part #3931288
UPC783510210823
Product Description
nVent HOFFMAN Spectracool Enclosure Air Conditioner, 3-Phase Indoor, Series: MCLG, 460 V AC, 1.3/1.4 A, 1435 W Power, 50/60 Hz Frequency, 4900 Btu/hr Capacity, NEMA 4X Enclosure, -40 to 55 deg C, Ceiling Mounting, Stainless Steel, Light Gray, 28.55 in H x 16.97 in W x 10.1 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Amps1.3/1.4 A
BABA CompliantYes
CapacityRange: 4655 Btu/hr
Capacity Range4900 Btu/hr
ColorLight Gray
Country of OriginMX
Dimensions28.55 in H x 16.97 in W x 10.1 in D
Enclosure TypeNEMA 4X
Frequency Rating50/60 Hz
ManufacturernVent
MaterialStainless Steel
Mounting TypeCeiling
Power Rating1435 W
SeriesMCLG
Temperature Rating-40 to 55 deg C
Type3-Phase Indoor
Type / Style3-Phase Indoor
Voltage460 VAC
Voltage Rating460 V AC
Documents
Applications
Industrial Automation, Telecommunications Equipment, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense System Applications
Features
- Attractive industrial design with minimal use of visible fasteners
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include, Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
