nVent HOFFMAN E8PB

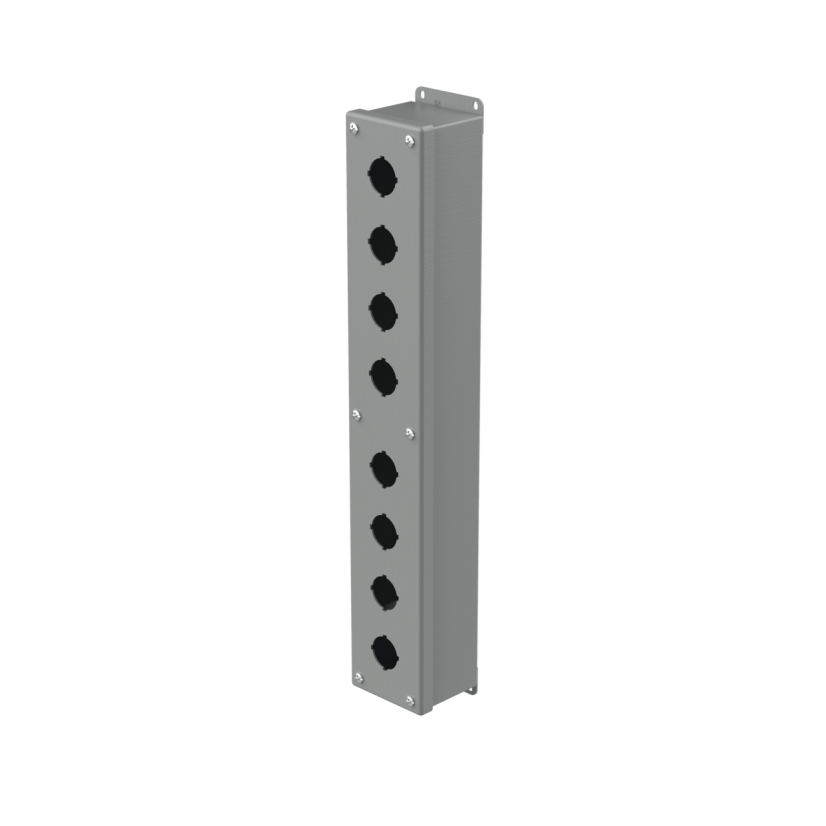

nVent HOFFMAN E8PB PB1 Pushbutton Enclosure, 20-1/4 in L x 3-1/4 in W x 2-3/4 in D, 8 Outlets, NEMA 12/IP65 NEMA Rating, Steel
nVent HOFFMAN E8PB
nVent HOFFMAN E8PB PB1 Pushbutton Enclosure, 20-1/4 in L x 3-1/4 in W x 2-3/4 in D, 8 Outlets, NEMA 12/IP65 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN Pushbutton Enclosure, Series: PB1, 20-1/4 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12/IP65, Hinged Cover, 8 Outlets, Wall Mount, Steel, ANSI 61 Polyester Powder Painted, Gray
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginMX
Cover TypeHinged
FinishANSI 61 Polyester Powder Painted
Hole Size30.5 mm
ManufacturernVent
MaterialSteel
Mounting TypeWall
NEMA RatingNEMA 12/IP65
Number of Outlets8
Package Height3.1 in
Package Length20 in
Package TypePIECE
Package Volume224.64 cu-in
Package Weight5.9 lb
Package Width4 in
SeriesPB1
Type / Style30.5-mm and 22.5-mm Pushbutton Enclosures, Type 12
Documents
Applications
For hold 30.5 mm or 22.5 mm pushbuttons and switches
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
Specifications
Number of Outlets: 8
