nVent HOFFMAN E1PBA

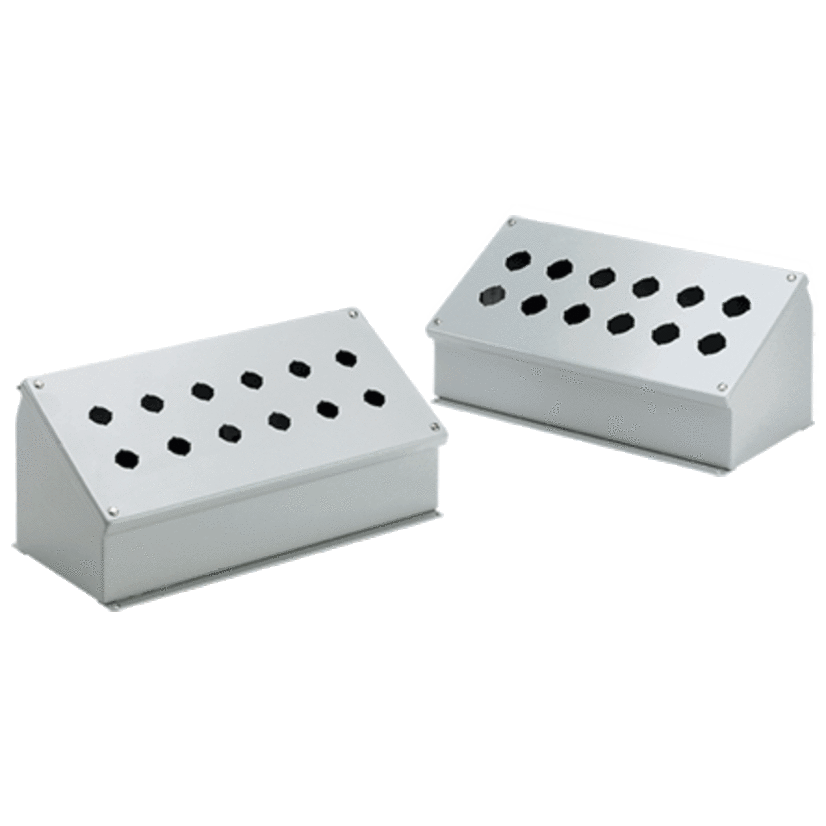

nVent HOFFMAN E1PBA PB1 Sloped Front Pushbutton Enclosure, 3-1/2 in L x 3-1/4 in W x 4.84 in D, 1 Outlets, NEMA 12/IP65 NEMA Rating, Steel
nVent HOFFMAN E1PBA
nVent HOFFMAN E1PBA PB1 Sloped Front Pushbutton Enclosure, 3-1/2 in L x 3-1/4 in W x 4.84 in D, 1 Outlets, NEMA 12/IP65 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #E1PBA
Werner Part #37044
UPC783510585204
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #E1PBA
Werner Part #37044
UPC783510585204
Product Description
nVent HOFFMAN Pushbutton Enclosure, Sloped Front, Series: PB1, 3-1/2 in Length, 3-1/4 in Width, 4.84 in Depth, NEMA 12/IP65, Hinged Cover, 1 Outlets, Panel Mount, Steel, ANSI 61 Polyester Powder Painted, Gray
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginMX
Cover TypeHinged
FinishANSI 61 Polyester Powder Painted
Hole Size30.5 mm
ManufacturernVent
MaterialSteel
Mounting TypePanel
NEMA RatingNEMA 12/IP65
Number of Outlets1
Package Height5 in
Package Length11 in
Package TypeCase
Package Volume69.12 cu-in
Package Weight6.1 lb
Package Width6 in
SeriesPB1
TypeSloped Front
Type / StyleSloped Front
Documents
Applications
For hold 30.5 mm or 22.5 mm pushbuttons and switches, where slanted control surfaces are desired
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 7.25 x 6.25 x 6.75 in (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- External welded-on mounting brackets for easy installation
Specifications
Number of Outlets: 1
