nVent HOFFMAN CSD302410WLG

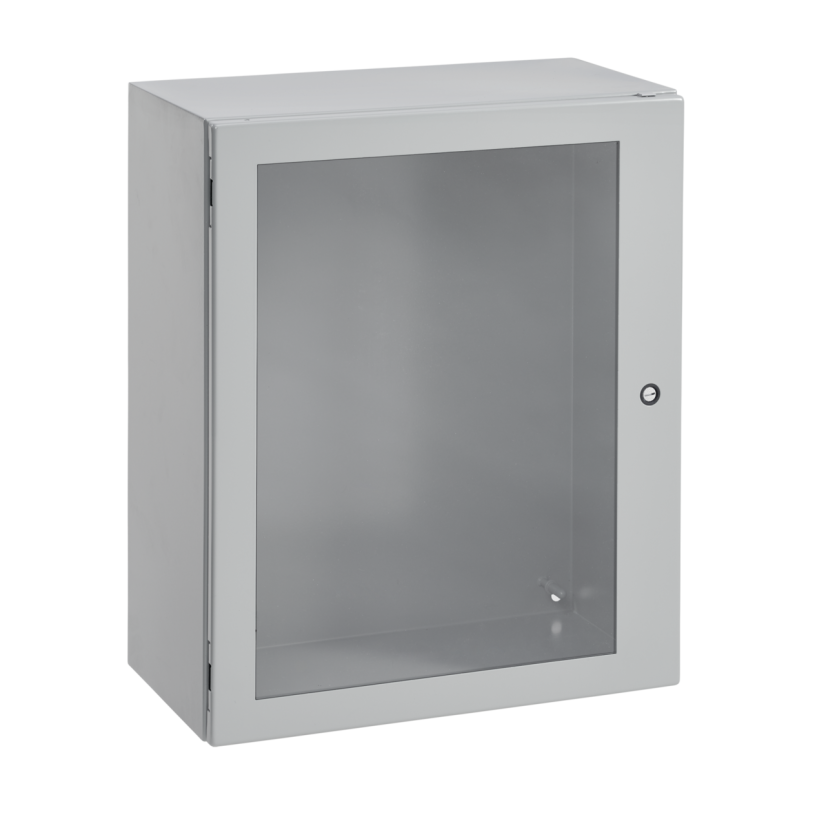

nVent HOFFMAN CONCEPT CSD302410WLG CW1 1-Door Enclosure, 30 in L x 24 in W x 10 in D, NEMA 4/12 NEMA Rating, Steel
nVent HOFFMAN CSD302410WLG
nVent HOFFMAN CONCEPT CSD302410WLG CW1 1-Door Enclosure, 30 in L x 24 in W x 10 in D, NEMA 4/12 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CSD302410WLG
Werner Part #290959
UPC783510378493
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CSD302410WLG
Werner Part #290959
UPC783510378493
Product Description
nVent HOFFMAN CONCEPT Enclosure, 1-Door, Series: CW1, 30 in Length, 24 in Width, 10 in Depth, NEMA 4/12, Concealed Hinged Cover, 22.2 in W x 28.2 in H Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Light Gray
Attributes
Documents
Applications
Features
Included
Specifications
Warranty
Attributes
BABA CompliantYes
ColorLight Gray
Country of OriginUS
Cover TypeConcealed Hinged
FinishPolyester Powder Painted
ManufacturernVent
MaterialSteel
Mounting TypeWall
NEMA RatingNEMA 4/12
Package Height12 in
Package Length35 in
Package TypePIECE
Package Volume10506.24 cu-in
Package Weight47 lb
Package Width25 in
Panel Size22.2 in W x 28.2 in H
SeriesCW1
Size22.2 in W x 28.2 in H
Type1-Door
Type / Style1-Door
Documents
Applications
Machine Control Applications
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
Included
Panel Mounting Nuts, Panel Grounding Hardware and Sealing Washers
Specifications
Quarter Turn Latch
Warranty
1 Year
