nVent HOFFMAN CR290416G097

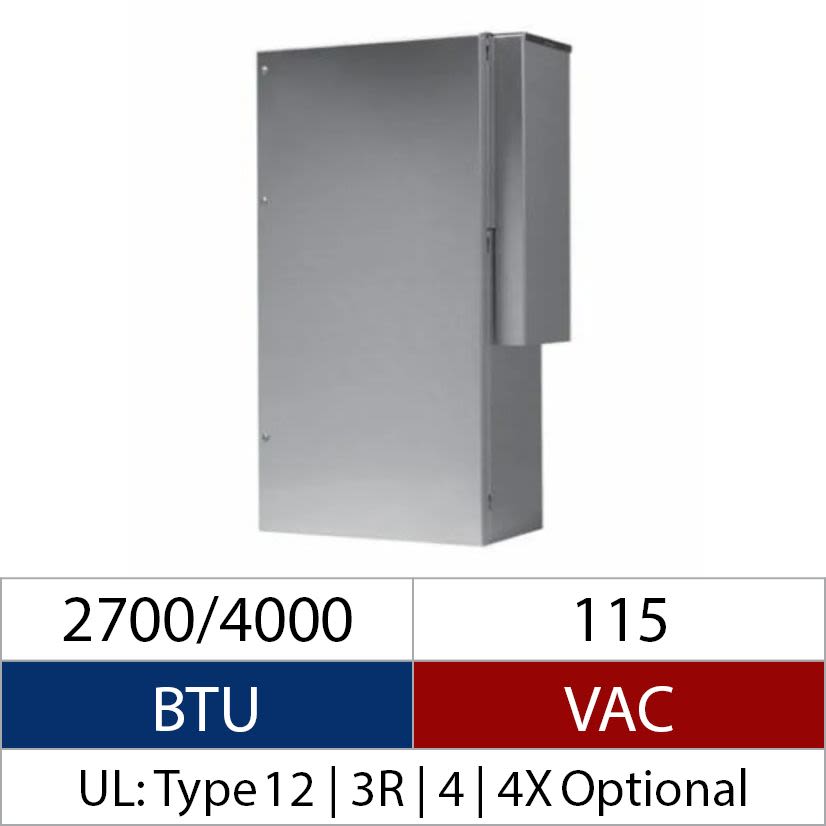

Hoffman Spectracool ProAir CR290416G097 MCL Enclosure Air Conditioner, 115 V AC, 12.1/12.7 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2700/4000 Btu/hr
nVent HOFFMAN CR290416G097
Hoffman Spectracool ProAir CR290416G097 MCL Enclosure Air Conditioner, 115 V AC, 12.1/12.7 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2700/4000 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR290416G097
Werner Part #4221658
UPC783510223311
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR290416G097
Werner Part #4221658
UPC783510223311
Product Description
Hoffman Spectracool ProAir Enclosure Air Conditioner, Series: MCL, 115 V AC, 12.1/12.7 A, 791/1172 W, 50/60 Hz, 2700/4000 Btu/hr Capacity range, NEMA 3R/4/12, Basic Mechanical Thermostat Control, -40 to 131 deg F, Flanged Mount, Steel, Gray, 29.5 in H x 15.75 in W x 8.63 in D
Attributes
Documents
Applications
Included
Features
Attributes
Amps12.1/12.7 A
BABA CompliantYes
CapacityRange: 2700/4000 Btu/hr
Capacity Range2700/4000 Btu/hr
ColorGray
Control TypeBasic Mechanical Thermostat
Country of OriginUS
Dimensions29.5 in H x 15.75 in W x 8.63 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSteel
Mounting TypeFlanged
Package TypeEACH
Power Rating791/1172 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type / StyleMCL Enclosure
Voltage115 VAC
Voltage Rating115 V AC
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense Systems Applications
Included
Electro Mechanical Thermostat and Surge Suppressor
Features
- Attractive industrial design with minimal use of visible fasteners
- Robust reciprocating compressor
- Low carbon mild steel sheet metal cover for rugged factory and outdoor environments
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
- Easy mount flanges for simple installation
- High performance fans and blowers designed for densely packed enclosures
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Easy maintenance design
- Reliable mechanical thermostat located behind the filter of the unit
