nVent HOFFMAN CR290416G002

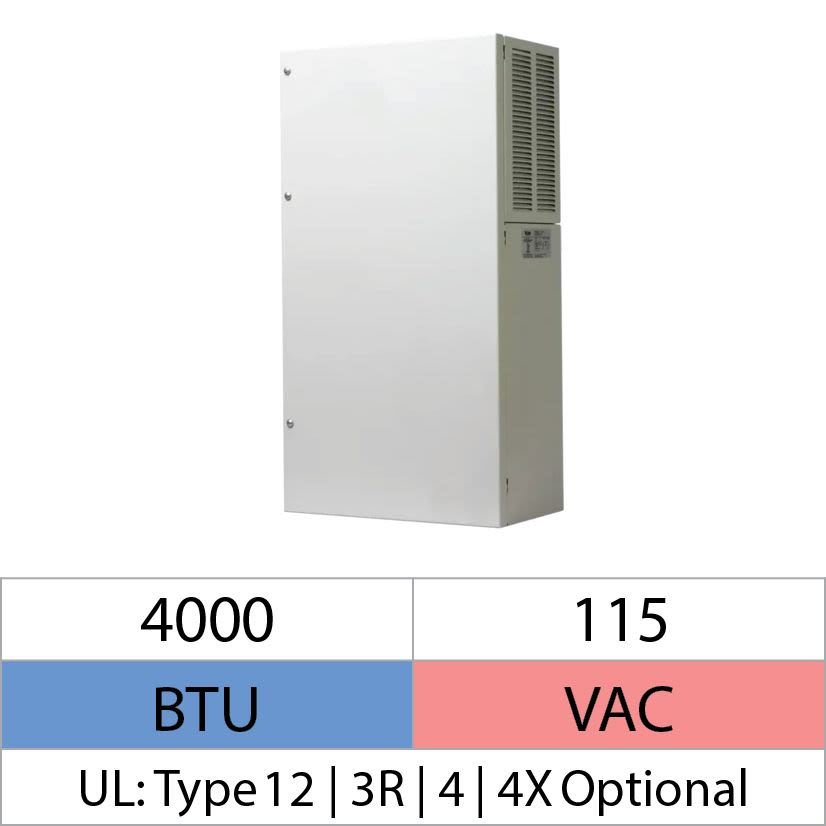

nVent HOFFMAN ProAir CR290416G002 MCL 1-Phase Indoor Sealed Enclosure Air Conditioner, 115 V AC, 9.6/10.7 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 4000 Btu/hr
nVent HOFFMAN CR290416G002
nVent HOFFMAN ProAir CR290416G002 MCL 1-Phase Indoor Sealed Enclosure Air Conditioner, 115 V AC, 9.6/10.7 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 4000 Btu/hrOut of Stockmore info
|
BrandnVent HOFFMAN
MFG #CR290416G002
Werner Part #36806
UPC783510756109
Out of Stockmore info
|
BrandnVent HOFFMAN
MFG #CR290416G002
Werner Part #36806
UPC783510756109
Product Description
nVent HOFFMAN ProAir Sealed Enclosure Air Conditioner, 1-Phase Indoor, Series: MCL, 115 V AC, 9.6/10.7 A, 1172 W Power, 50/60 Hz Frequency, 4000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Mechanical Thermostat Control, Plug Connection, -40 to 131 deg F, Side Mounting, Steel, Light Gray, 29.5 in H x 15.75 in W x 8.63 in D Dimensions
Attributes
Documents
Applications
Features
Included
Attributes
Amps9.6/10.7 A
BABA CompliantYes
CapacityRange: 2800 Btu/hr
Capacity Range4000 Btu/hr
ColorLight Gray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions29.5 in H x 15.75 in W x 8.63 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSteel
Mounting TypeSide
Package Height30.5 in
Package Length18 in
Package TypePIECE
Package Volume6030.72 cu-in
Package Weight99 lb
Package Width11 in
Power Rating1172 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type1-Phase Indoor
Type / Style1-Phase Indoor
Voltage115 VAC
Voltage Rating115 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense System Applications
Features
- Easy maintenance - hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
Included
Mounting Hardware, Gasket and User Manual
