nVent HOFFMAN CR230226G028

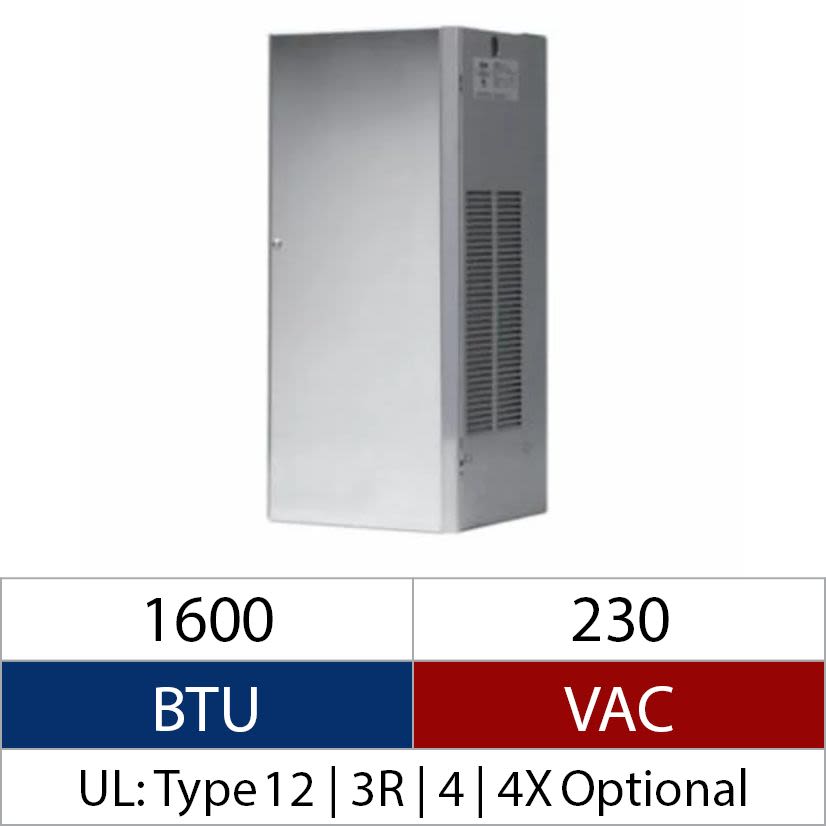

Hoffman Spectracool ProAir CR230226G028 MCL Enclosure Air Conditioner, 230 V AC, 2.7/2.5 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 1600 Btu/hr
nVent HOFFMAN CR230226G028
Hoffman Spectracool ProAir CR230226G028 MCL Enclosure Air Conditioner, 230 V AC, 2.7/2.5 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 1600 Btu/hrNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hoffman Spectracool ProAir Enclosure Air Conditioner, Series: MCL, 230 V AC, 2.7/2.5 A, 469 W, 50/60 Hz, 1600 Btu/hr Capacity Range, NEMA 3R/4/12, Basic Mechanical Thermostat Control, -40 to 131 deg F, Flanged Mount, Mild Steel/Sheet Metal, Gray, 23 in H x 10 in W x 8-3/4 in D
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Amps2.7/2.5 A
BABA CompliantYes
CapacityRange: 1600 Btu/hr
Capacity Range1600 Btu/hr
ColorGray
Control TypeBasic Mechanical Thermostat
Country of OriginUS
Dimensions23 in H x 10 in W x 8-3/4 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialMild Steel/Sheet Metal
Mounting TypeFlanged
Package Height24 in
Package Length15 in
Package TypeEACH
Package Volume4320 cu-in
Package Weight56 lb
Package Width12 in
Power Rating469 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type / StyleMCL Enclosure
Voltage230 VAC
Voltage Rating230 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense Systems Applications
Included
Electro Mechanical Thermostat, Surge Suppressor
Warranty
Limited
Features
- Attractive industrial design with minimal use of visible fasteners
- Robust reciprocating compressor
- Low carbon mild steel sheet metal cover for rugged factory and outdoor environments
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
- Easy mount flanges for simple installation
- High performance fans and blowers designed for densely packed enclosures
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Easy maintenance
- Reliable mechanical thermostat located behind the filter of the unit
