nVent HOFFMAN CFM20166

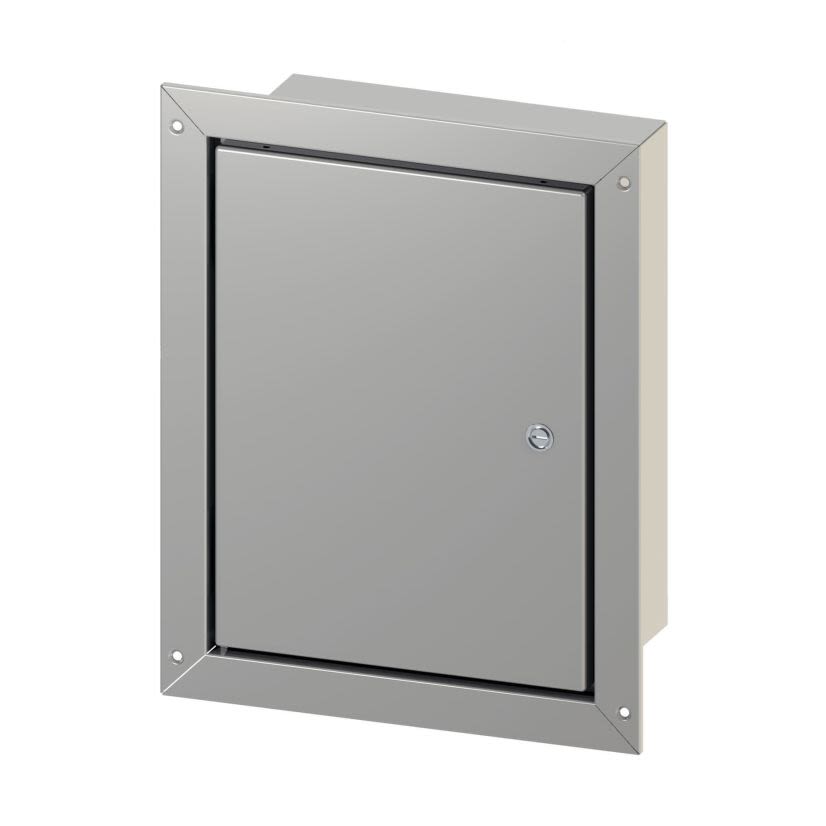

nVent HOFFMAN CONCEPT CFM20166 CW1 Enclosure, 20 in L x 16 in W x 6 in D, NEMA 4/12 NEMA Rating, Steel
nVent HOFFMAN CFM20166
nVent HOFFMAN CONCEPT CFM20166 CW1 Enclosure, 20 in L x 16 in W x 6 in D, NEMA 4/12 NEMA Rating, SteelIn Stock: 7more info
|
BrandnVent HOFFMAN
MFG #CFM20166
Werner Part #3755377
UPC783510794903
In Stock: 7more info
|
BrandnVent HOFFMAN
MFG #CFM20166
Werner Part #3755377
UPC783510794903
Product Description
nVent HOFFMAN CONCEPT Enclosure, Series: CW1, 20 in Length, 16 in Width, 6 in Depth, NEMA 4/12, Concealed Hinged Cover, 14.2 in W x 18.2 in H Panel, Lock: Quarter Turn Latch, Flush Mount, Steel, Polyester Powder Painted, Gray
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
BABA CompliantYes
ColorGray
Country of OriginUS
Cover TypeConcealed Hinged
FinishPolyester Powder Painted
ManufacturernVent
MaterialSteel
Mounting TypeFlush
NEMA RatingNEMA 4/12
Package Height11.3 in
Package Length27 in
Package TypePIECE
Package Volume6877.44 cu-in
Package Weight29.2 lb
Package Width23 IN
Panel Size14.2 in W x 18.2 in H
SeriesCW1
Size14.2 in W x 18.2 in H
Type / StyleCONCEPT?, Type 4 and 12
Documents
Applications
Machine Control Applications
Included
Panel Mounting Nuts, Panel Grounding Hardware and Sealing Washers
Warranty
1 Year
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
Specifications
Quarter Turn Latch
