nVent HOFFMAN CDSC24228

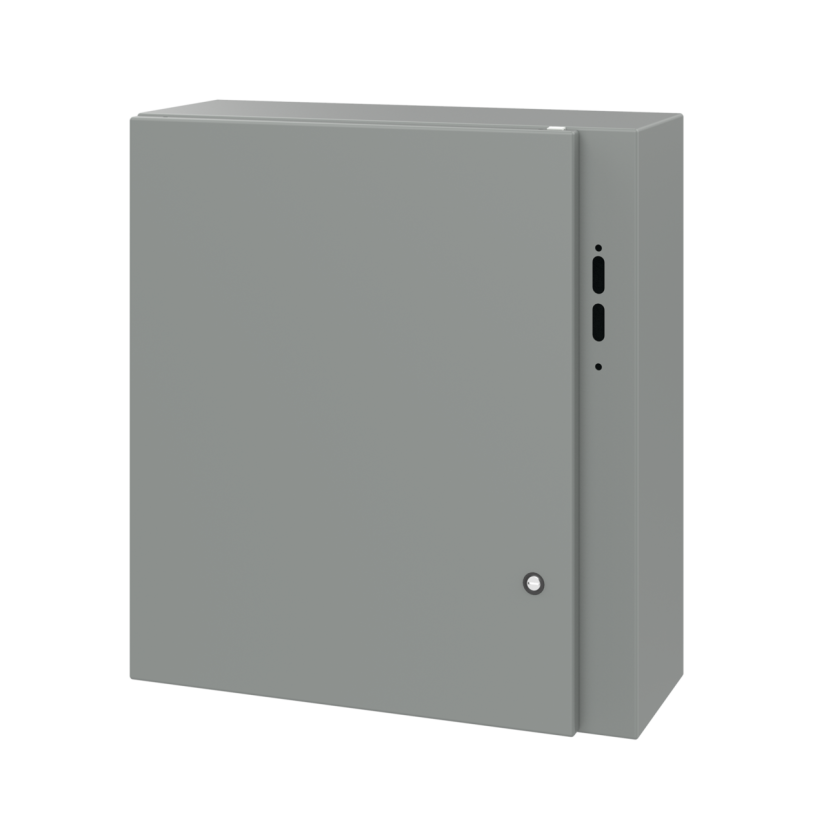

nVent HOFFMAN CONCEPT CDSC24228 CWD Disconnect Enclosure, 24 in L x 22 in W x 8 in D, NEMA 4/IP66 NEMA Rating, Steel
nVent HOFFMAN CDSC24228
nVent HOFFMAN CONCEPT CDSC24228 CWD Disconnect Enclosure, 24 in L x 22 in W x 8 in D, NEMA 4/IP66 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN CONCEPT Disconnect Enclosure, Series: CWD, 24 in Length, 22 in Width, 8 in Depth, NEMA 4/IP66, Continuous Hinged/Removable Cover, 18.2 in W x 22.2 in H Panel, Lock: 2-Point Latch/Padlock Handle, Wall Mount, Steel, Polyester Powder Painted, Gray
Attributes
Documents
Applications
Features
Attributes
BABA CompliantYes
ColorGray
Country of OriginUS
Cover TypeContinuous Hinged/Removable
FinishPolyester Powder Painted
ManufacturernVent
MaterialSteel
Mounting TypeWall
NEMA RatingNEMA 4/IP66
Package TypePIECE
Panel Size18.2 in W x 22.2 in H
SeriesCWD
Type / StyleCONCEPT? Disconnect Enclosure, Type 4
Documents
Applications
For indoor and outdoor environmental protection
Features
- Seams continuously welded and ground smooth
- External-formed 90 deg body flange channels away liquids
- Bonding provision on door, grounding stud on body
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Corner-formed doors
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
