nVent HOFFMAN ADB275

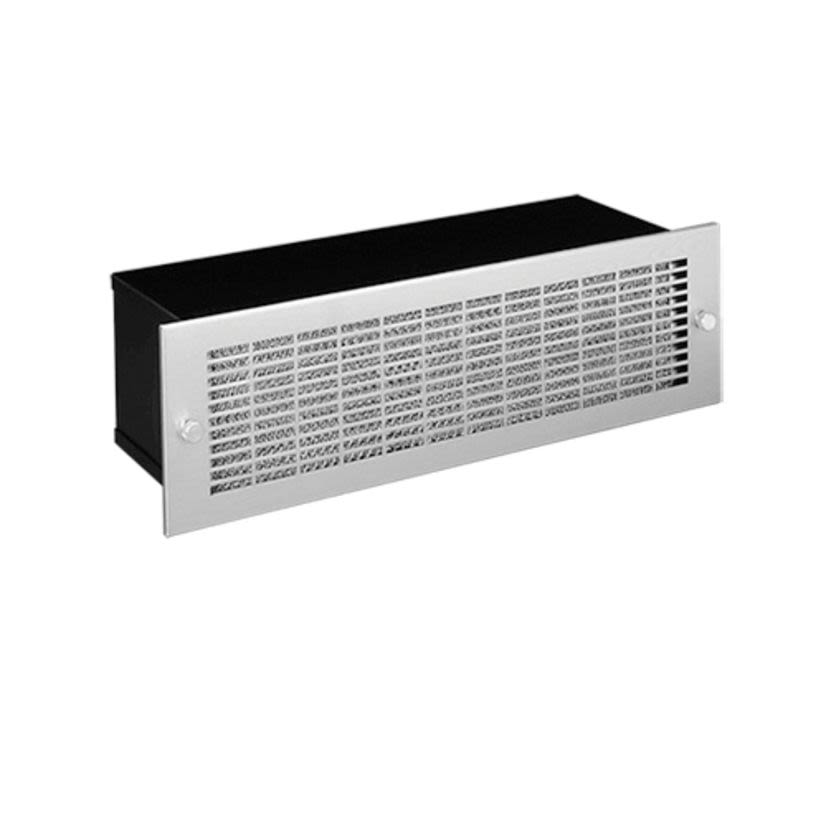

Hoffman ADB275 D85 Blower Fan Package, 115 V AC, 1.2 A, 84 W Power Rating, 230/275 cfm Air Flow
nVent HOFFMAN ADB275
Hoffman ADB275 D85 Blower Fan Package, 115 V AC, 1.2 A, 84 W Power Rating, 230/275 cfm Air FlowNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #ADB275
Werner Part #36159
UPC783510222703
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #ADB275
Werner Part #36159
UPC783510222703
Product Description
Hoffman Blower Fan Package, Series: D85, 115 V AC, 1.2 A, 84 W, 230/275 cfm, 2580/3100 rpm, 19 in Rack Mount, AC Motor, Steel Housing, 5-3/4 in H x 19 in W x 7-1/4 in D
Attributes
Documents
Applications
Included
Features
Attributes
Air Flow Rate230/275 cfm
Amps1.2 A
BABA CompliantYes
Country of OriginUS
Dimensions5-3/4 in H x 19 in W x 7-1/4 in D
Housing MaterialSteel
ManufacturernVent
MaterialSteel
Mounting Type19 in Rack
Package TypePIECE
Power Rating84 W
SeriesD85
Speed2580/3100 rpm
Type / StyleBlower Fan Package
Voltage115 VAC
Voltage Rating115 V AC
Documents
Applications
For enclosure or 19 in rack applications
Included
Exhaust Grille and Filter, Filter Adhesive and Temperature Control Switch
Features
- Intake grille is easily removed with two captive thumbnuts
- Washable aluminum filter
- Single phase motor powers the statically balanced blower
- Motor is thermally protected and cooled by incoming forced air
- Direct drive induction motor contains permanently lubricated ball bearings
- Lubricant protects from -20 F to 298 F (-29 C to 148 C)
- Rotating components are suspended on neoprene shock-mounts
- Three-conductor power cord (five feet long)
- The unit is self-supporting with 16 ga steel flanges notched per EIA RS-310-D
- An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately
