nVent HOFFMAN A48HS3712SSLP

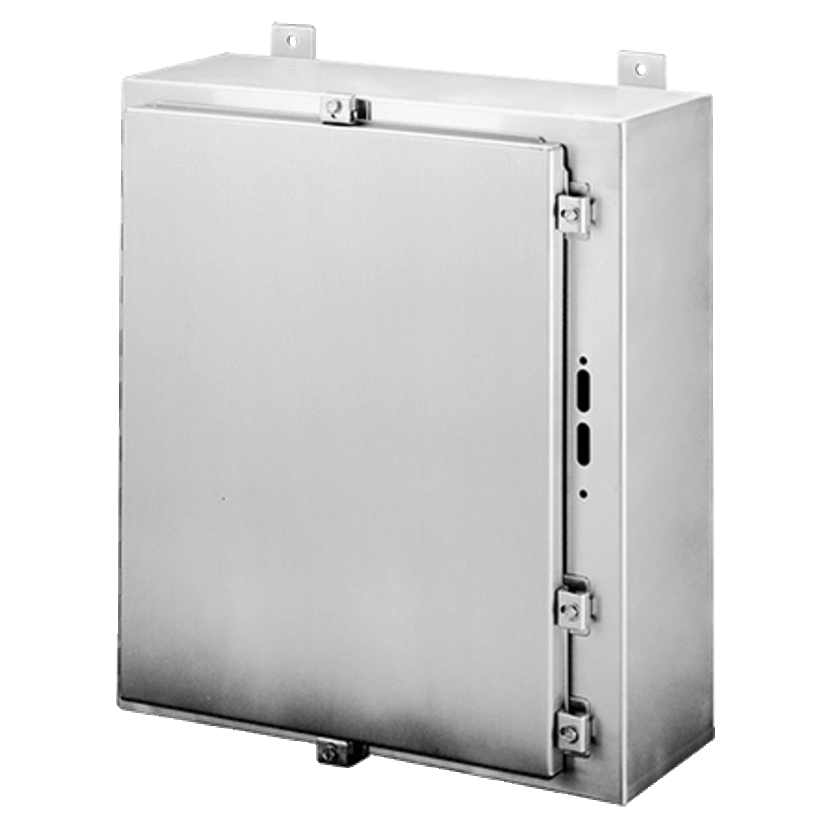

nVent HOFFMAN A48HS3712SSLP A19S Disconnect Enclosure With Clamp, 48 in L x 37.38 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A48HS3712SSLP
nVent HOFFMAN A48HS3712SSLP A19S Disconnect Enclosure With Clamp, 48 in L x 37.38 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #A48HS3712SSLP
Werner Part #301975
UPC783510275808
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #A48HS3712SSLP
Werner Part #301975
UPC783510275808
Product Description
nVent HOFFMAN Disconnect Enclosure, Series: A19S, 48 in Length, 37.38 in Width, 12 in Depth, NEMA 4X/IP66, Continuous Hinged Cover, 33 in W x 45 in H Panel, Wall Mount, 304 Stainless Steel, Brushed
Attributes
Documents
Applications
Features
Attributes
BABA CompliantYes
Country of OriginUS
Cover TypeContinuous Hinged
FinishBrushed
ManufacturernVent
Material304 Stainless Steel
Mounting TypeWall
NEMA RatingNEMA 4X/IP66
Package TypePIECE
Panel Size33 in W x 45 in H
SeriesA19S
Type / StyleDisconnect Enclosure
Documents
Applications
For disconnect applications in which a clamp-secured door is preferred
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Data pocket is high-impact thermoplastic
- Seamless foam-in-place gasket
- Collar studs provided for mounting optional panels
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door, ground stud on body
