nVent HOFFMAN A42X2E5410

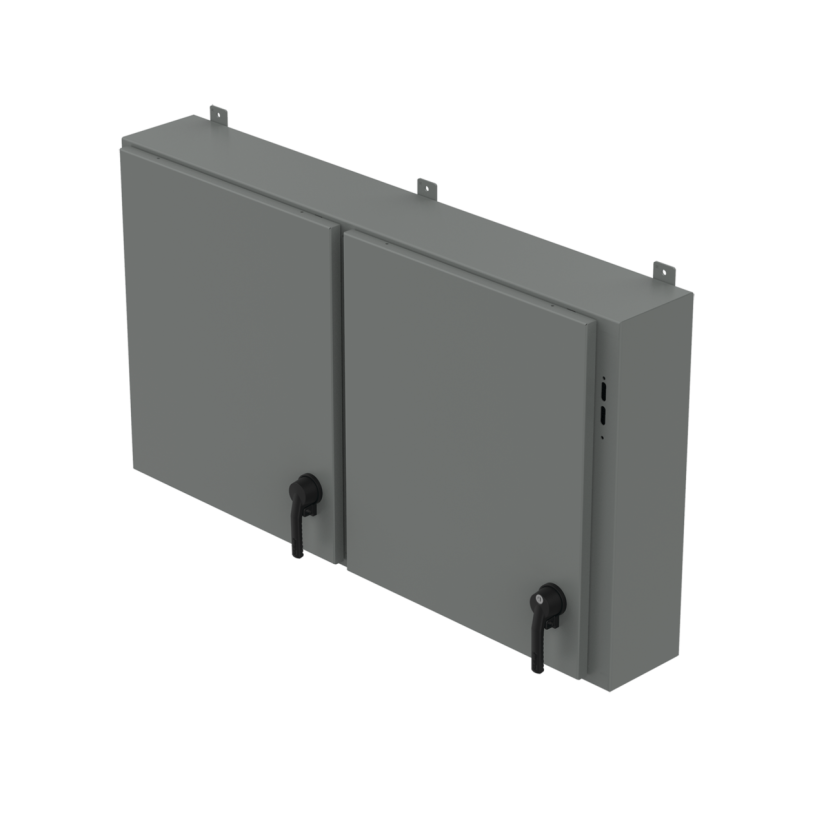

nVent HOFFMAN A42X2E5410 A26M2 2-Door Low Profile Disconnect Enclosure With Handle, 42 in L x 54-1/2 in W x 10 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN A42X2E5410
nVent HOFFMAN A42X2E5410 A26M2 2-Door Low Profile Disconnect Enclosure With Handle, 42 in L x 54-1/2 in W x 10 in D, NEMA 12/IP55 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #A42X2E5410
Werner Part #1411863
UPC783510127220
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #A42X2E5410
Werner Part #1411863
UPC783510127220
Product Description
nVent HOFFMAN Disconnect Enclosure, 2-Door Low Profile, Series: A26M2, 42 in Length, 54-1/2 in Width, 10 in Depth, NEMA 12/IP55, Concealed Hinged Cover, Lock: 3-Point Latch/Padlock Handle, Wall Mount, Steel, Polyester Powder Painted, Gray
Attributes
Documents
Applications
Features
Attributes
ColorGray
Country of OriginMX
Cover TypeConcealed Hinged
FinishPolyester Powder Painted
ManufacturernVent
MaterialSteel
Mounting TypeWall
NEMA RatingNEMA 12/IP55
Package Height52 in
Package Length24 IN
Package TypePIECE
Package Volume93605.76 cu-in
Package Weight280 lb
Package Width56 in
SeriesA26M2
Type2-Door Low Profile
Type / Style2-Door Low Profile
Documents
Applications
For limited floor spaces applications
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors, 2-point latch on enclosures up to 36 in (914 mm), 3-point latch on enclosures 42 in (1067 mm) and above
- Oil-resistant gasket
- Removable .127 in thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
