nVent HOFFMAN A161206LPEMCSS

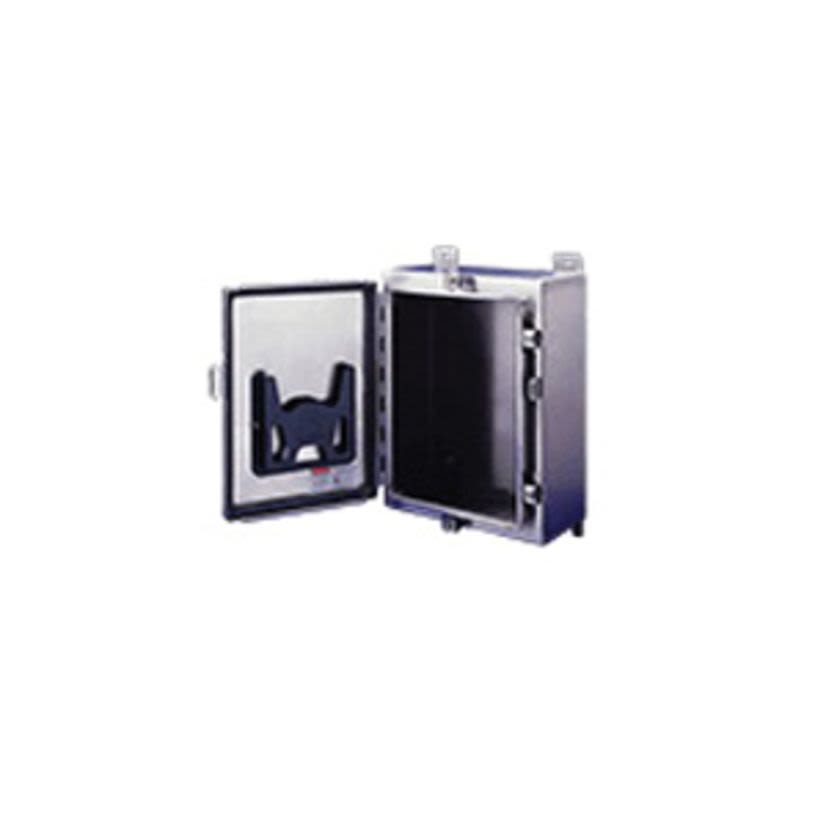

nVent HOFFMAN A161206LPEMCSS A4SEM Medium Type EMC Enclosure, 16 in L x 12 in W x 6 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A161206LPEMCSS
nVent HOFFMAN A161206LPEMCSS A4SEM Medium Type EMC Enclosure, 16 in L x 12 in W x 6 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #A161206LPEMCSS
Werner Part #3990785
UPC783510258597
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #A161206LPEMCSS
Werner Part #3990785
UPC783510258597
Product Description
nVent HOFFMAN Enclosure, Medium Type EMC, Series: A4SEM, 16 in Length, 12 in Width, 6 in Depth, NEMA 4X/IP66, Clamp/Continuous Hinged Cover, 9 in W x 13 in H Panel, Lock: Hasp and Staple/Padlock, Wall Mount, 304 Stainless Steel, Brushed
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Country of OriginUS
Cover TypeClamp/Continuous Hinged
FinishBrushed
ManufacturernVent
Material304 Stainless Steel
Mounting TypeWall
NEMA RatingNEMA 4X/IP66
Package Height8.2 IN
Package Length21 in
Package TypePIECE
Package Volume2315.52 cu-in
Package Weight21.2 lb
Package Width13 IN
Panel Size9 in W x 13 in H
SeriesA4SEM
Size9 in W x 13 in H
TypeMedium Type EMC
Type / StyleMedium Type EMC
Documents
Applications
Indoor/Outdoor EMC Applications
Warranty
1 Year
Features
- EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
- Rolled lip around three sides of door
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on door, grounding stud on body
Specifications
Hasp and Staple/Padlock
