nVent HOFFMAN A10R104HM

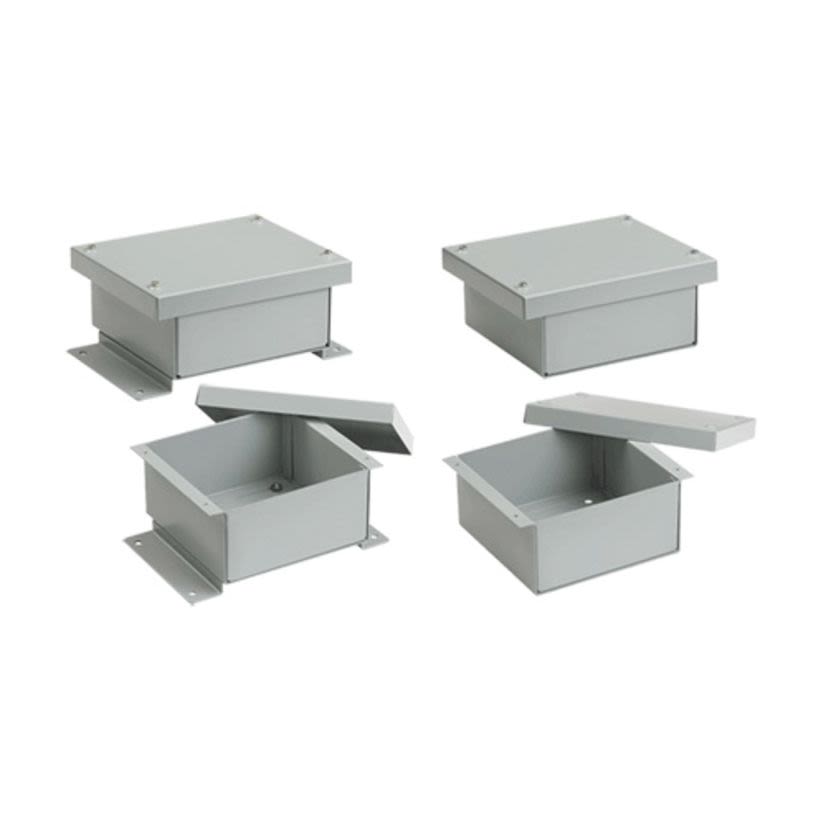

nVent HOFFMAN A10R104HM A90RH Enclosure, 10 in L x 10 in W x 4 in D, NEMA 3R/IP32 NEMA Rating, Steel
nVent HOFFMAN A10R104HM
nVent HOFFMAN A10R104HM A90RH Enclosure, 10 in L x 10 in W x 4 in D, NEMA 3R/IP32 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN Enclosure, Series: A90RH, 10 in Length, 10 in Width, 4 in Depth, NEMA 3R/IP32, Screw Cover, Surface Mount, Steel, Galvanized, Gray
Attributes
Documents
Applications
Features
Attributes
ColorGray
Country of OriginMX
Cover TypeScrew
FinishGalvanized
ManufacturernVent
MaterialSteel
Mounting TypeSurface
NEMA RatingNEMA 3R/IP32
Package Height15.75 in
Package Length14 in
Package TypePIECE
Package Volume2453.76 cu-in
Package Weight10.76 lb
Package Width11 in
SeriesA90RH
Type / StyleHorizontal-Mount, Type 3R
Documents
Applications
For used as a wiring, junction or pull box for outside horizontal mounting applications such as rooftops or pads
Features
- The screw cover is the drip shield providing 3/4 in overhang on each side for outdoor protection
- No gasketing
- Enclosure body flange is formed outward
- Mounting holes on back for direct mounting through the back to strut or mounting surface, vertical structure for mounting not required
- Mounting brackets provide a 1 in clearance off surface for protection against pooling water
- Enclosures are finished with paint over plated surfaces
