Leviton 430MI9WLEVS

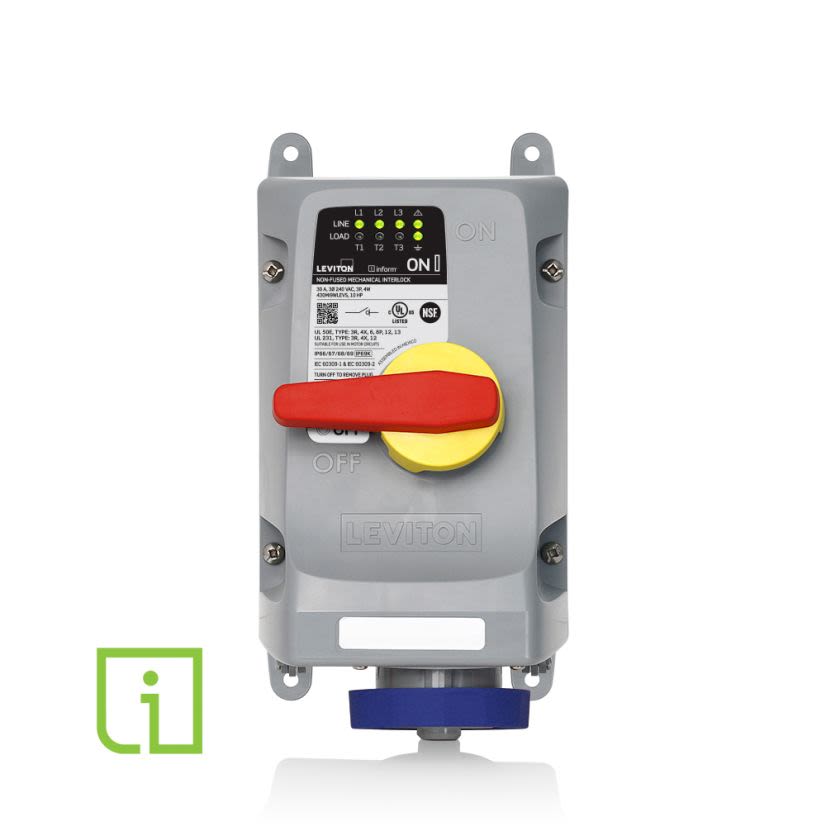

Leviton 430MI9WLEVS LEV Series 3-Phase Industrial Grade Non-Fused North American Rated Watertight Pin and Sleeve Mechanical Interlock Device With On-Device Local Monitoring Sensing, Inform Technology, 240 V AC, 30 A, 3 Poles, 4 Wires
Leviton 430MI9WLEVS
Leviton 430MI9WLEVS LEV Series 3-Phase Industrial Grade Non-Fused North American Rated Watertight Pin and Sleeve Mechanical Interlock Device With On-Device Local Monitoring Sensing, Inform Technology, 240 V AC, 30 A, 3 Poles, 4 WiresNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #430MI9WLEVS
Werner Part #4386475
UPC078477380857
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #430MI9WLEVS
Werner Part #4386475
UPC078477380857
Product Description
Leviton Pin and Sleeve Mechanical Interlock Device, 3-Phase Industrial Grade Non-Fused North American Rated Watertight, Series: LEV Series, 240 V AC, 30 A, 10 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Surface Mounting, PBT/Polycarbonate, Blue, 12.16 in L x 8.86 in W x 8.29 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorBlue
Country of OriginMX
Dimensions12.16 in L x 8.86 in W x 8.29 in H
Electrical Ratings18000 W
Enclosure TypeNEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K
GTIN78477380857
Horsepower10 hp
ManufacturerLeviton
MaterialPBT/Polycarbonate
Mounting TypeSurface
NEMA Rating3R, 4X, 12
Number of Poles3
Number of Wires4
Package Height8.88 in
Package Length12.75 in
Package TypeEACH
Package Weight7.48 lbs
Package Width7.5 in
Phase3-Phase
SeriesLEV Series
Type3-Phase Industrial Grade Non-Fused North American Rated Watertight
Voltage Rating240 V AC
Documents
Applications
Food and Beverages Applications
Features
- Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line-and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts
- Green LED on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure
- Impact, UV and chemical-resistant PBT enclosure
- Pre-wired IEC receptacle accepts all manufacturer IEC 60309-2 plugs
- NSF certified sanitary design trusted for use in food and beverage facilities
Specifications
- NSF:Ā 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- CSA: C22.2 No 94.1-07
- IEC Rating: IEC 60309-1, 60309-2, 60309-4
- UL: UL231, UL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746
Warranty
5 years Limited
