Hubbell Wiring Device - Kellems SNAP5362GYA

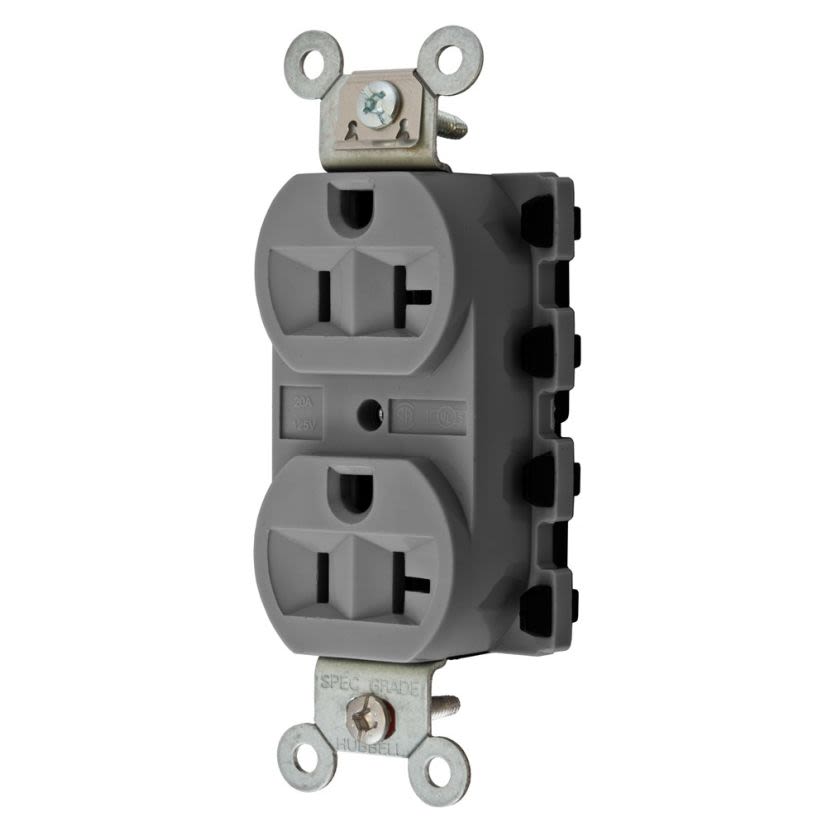

Hubbell Wiring Device-Kellems SNAPConnect SNAP5362GYA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Hubbell Wiring Device - Kellems SNAP5362GYA
Hubbell Wiring Device-Kellems SNAPConnect SNAP5362GYA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, GrayIn Stock: 5more info
|
In Stock: 5more info
|
Product Description
Hubbell Wiring Device-Kellems SNAPConnect, SNAP5362GYA, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Specification Grade, IP20 Enclosure, -40 to 75 deg C, Connectorized Terminal, Nylon, Gray, 3.28 x 1.56 x 1.1 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorGray
Country of OriginCN
Dimensions3.28 x 1.56 x 1.1 in
GradeSpecification
Horsepower1 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-20R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeConnectorized
Type1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount
Type / Style1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional
Voltage Rating125 V AC
Documents
Applications
Dry Location, Indoor, Education, Hospitality, Commercial Constructions, Pre-Fab Assembly and OEMs Applications
Warranty
Limited
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498|CSA C22.2 File No. 42|Federal Specification WC596|NEMA WD1/WD5
