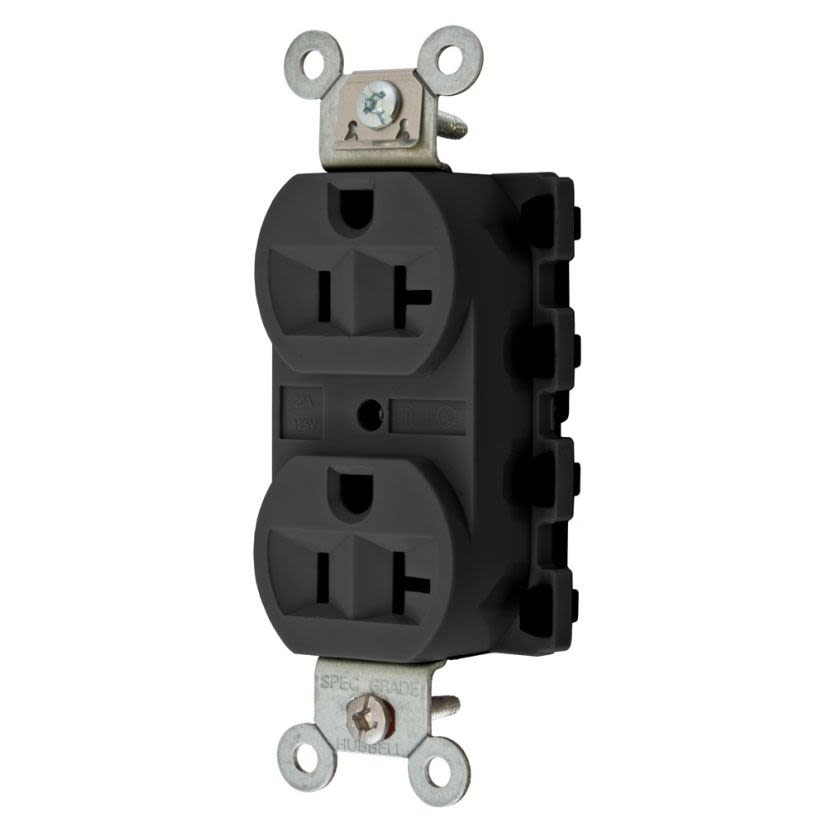

Hubbell Wiring Device - Kellems SNAP5362BKA
Hubbell Wiring Device-Kellems SNAPConnect SNAP5362BKA 1-Phase Duplex Extra Heavy Duty Traditional Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Black
Hubbell Wiring Device - Kellems SNAP5362BKA
Hubbell Wiring Device-Kellems SNAPConnect SNAP5362BKA 1-Phase Duplex Extra Heavy Duty Traditional Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems SNAPConnect, SNAP5362BKA, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Traditional Standard Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Connectorized Terminal, Nylon, Black, 3.28 x 1.64 x 1.1 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginCN
Dimensions3.28 x 1.64 x 1.1 in
GradeSpecification
Horsepower1 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeConnectorized
Type1-Phase Duplex Extra Heavy Duty Traditional Standard Screw Mount
Type / StyleDuplex Extra Heavy Duty Traditional Standard
Voltage Rating125 V AC
Documents
Applications
Education, Hospitality, Commercial Construction, Pre-Fab Assembly and OEM Applications
Warranty
Limited
Features
- Reduces installation time
- Audible SNAP, indicates solid connection
- Fully insulated design
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5|UL 498
