Hubbell Wiring Device - Kellems SNAP5262WA

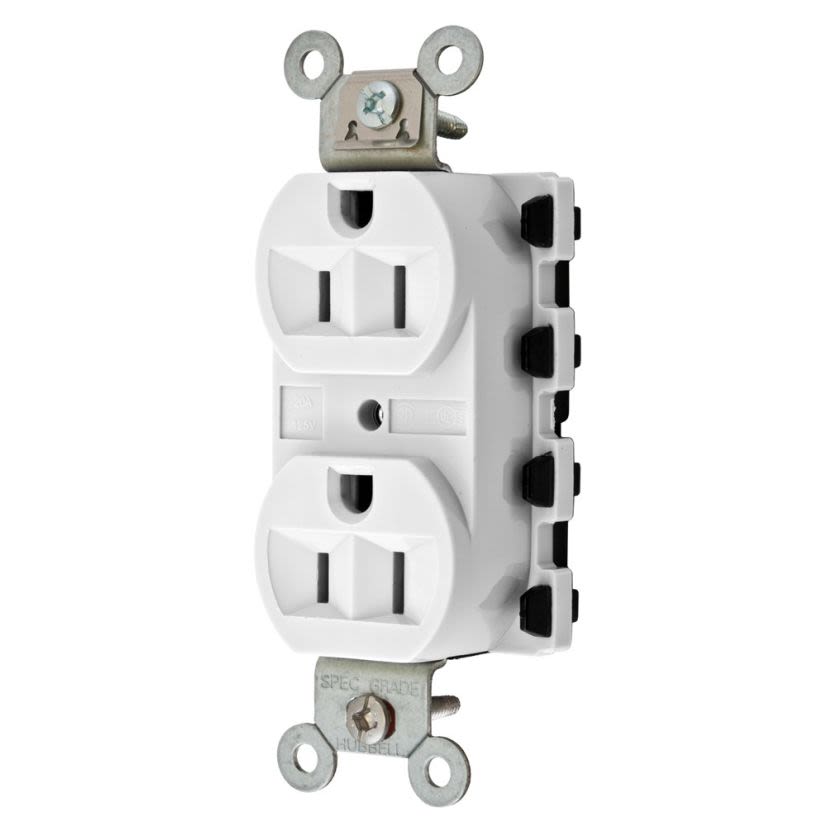

Hubbell Wiring Device-Kellems SNAPConnect SNAP5262WA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems SNAP5262WA
Hubbell Wiring Device-Kellems SNAPConnect SNAP5262WA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #SNAP5262WA
Werner Part #3963535
UPC783585247786
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #SNAP5262WA
Werner Part #3963535
UPC783585247786
Product Description
Hubbell Wiring Device-Kellems SNAPConnect, SNAP5262WA, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Specification Grade, IP20 Enclosure, -40 to 75 deg C, Connectorized Terminal, Nylon, White, 3.28 x 1.64 x 1.1 in Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions3.28 x 1.64 x 1.1 in
GradeSpecification
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeConnectorized
Type1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount
Type / Style1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional
Voltage Rating125 V AC
Documents
Applications
Dry Indoor, Education, Hospitality, Commercial Construction, Pre-Fab Assembly and OEM Applications
Features
- Fully insulated design
- Audible SNAP, indicates solid connection
- Abuse resistant nylon for extra heavy use applications
- Screw mounted
- Nylon top, RTP base, brass by-pass power contacts, wire clamps, mounting strap, lime terminal screws, ground screw and center assembly rivet, stainless steel automatic self grounding clip, steel zinc plated flat head mounting screws, steel-nickel finish ground tension clips
- Withstands 2000 VAC minimum dielectric voltage
- SNAPConnect eliminates exposed live terminals on the device
- Receptacle certified for current interrupting at full rated current
- 5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating
- Reduces installation time
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498 File No. E2186|CSA C22.2 No. 42/285|Federal Specification WC596
