Hubbell Wiring Device - Kellems IG5352TR

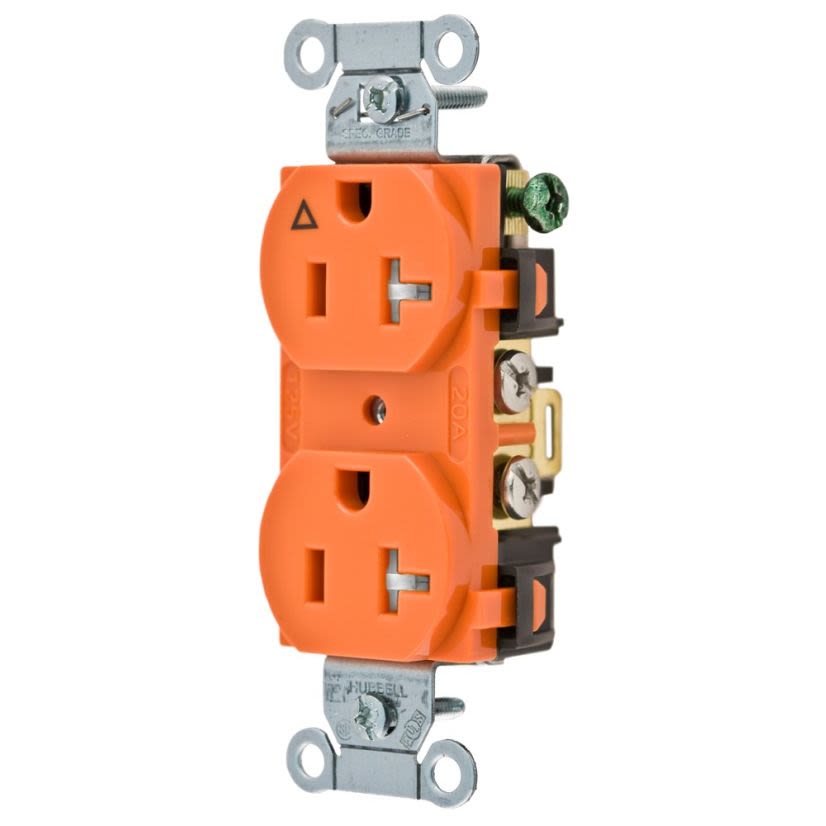

Hubbell Wiring Device-Kellems Hubbell-PRO SpikeShield IG5352TR Duplex Isolated Ground Standard Traditional Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
Hubbell Wiring Device - Kellems IG5352TR
Hubbell Wiring Device-Kellems Hubbell-PRO SpikeShield IG5352TR Duplex Isolated Ground Standard Traditional Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, OrangeIn Stock: 3more info
|
BrandHubbell Wiring Device - Kellems
MFG #IG5352TR
Werner Part #4216219
UPC783585540047
In Stock: 3more info
|
BrandHubbell Wiring Device - Kellems
MFG #IG5352TR
Werner Part #4216219
UPC783585540047
Product Description
Wiring Device-Kellems Hubbell-PRO SpikeShield® Straight Blade Receptacle, Duplex Isolated Ground Standard Traditional Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Specification Grade, -40 to 75 deg C, Back/Side Wired Screw Terminal, Nylon, Orange, 3.28 in H x 1.57 in W x 0.83 in D
Attributes
Documents
Features
Specifications
Attributes
ColorBrown
Country of OriginChina
Dimensions3.28 x 1.57 x 1.07 in
GradeCommercial/Specification
Horsepower1 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeBack and Side Wire/Screw
Type1-Phase Duplex Isolated Ground Standard Traditional Tamper-Resistant Screw Mount
Type / StyleDuplex Isolated Ground Standard Traditional Tamper-Resistant
Voltage Rating125 VAC
Documents
Features
Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistanceImpact resistant nylon smooth faceWraparound, locked on brass mounting strap provides additional support strength for receptacle assemblyAutomatic self-grounding clip assures ground continuity between mounting strap and metal wall boxIG triangle on the face of the receptacle clearly indicates isolated ground deviceAmperage and voltage clearly indicatedBack and side wiring capability provides easy installation with stranded or solid wireGreen grounding screw connected directly to the grounding contactsInsulation barrier construction is first patented by Hubbell® isolates ground contacts from the mounting strapSquare head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|C22.2 No. 42|Federal Specification W-C-596|NEMA WD1/WD5|UL 498 File No. E2186
