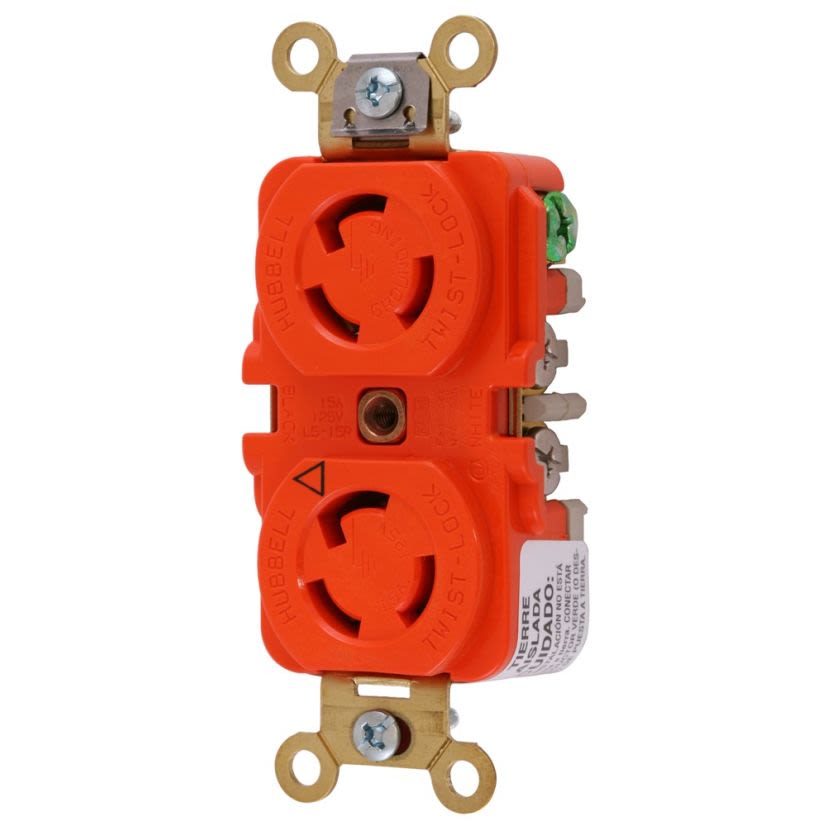

Hubbell Wiring Device - Kellems IG4700A
Hubbell Wiring Device-Kellems IG4700A IG Series 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount Locking Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Orange
Hubbell Wiring Device - Kellems IG4700A
Hubbell Wiring Device-Kellems IG4700A IG Series 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount Locking Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, OrangeNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, IG4700A, Locking Receptacle, 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount, Series: IG Series, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, L6-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Orange, 3.29 x 1.7 x 1.17 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorOrange
Country of OriginUS
Dimensions3.29 x 1.7 x 1.17 in
GradeIndustrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingL6-15R
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesIG Series
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount
Type / StyleHeavy Duty Duplex Grounding Standard Traditional
Voltage Rating125 V AC
Documents
Applications
Dry Locations and Indoor Applications
Warranty
Limited
Features
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
- Reinforced thermoplastic construction
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 V-2 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5
