Hubbell Wiring Device - Kellems HBLDS6SSVFD

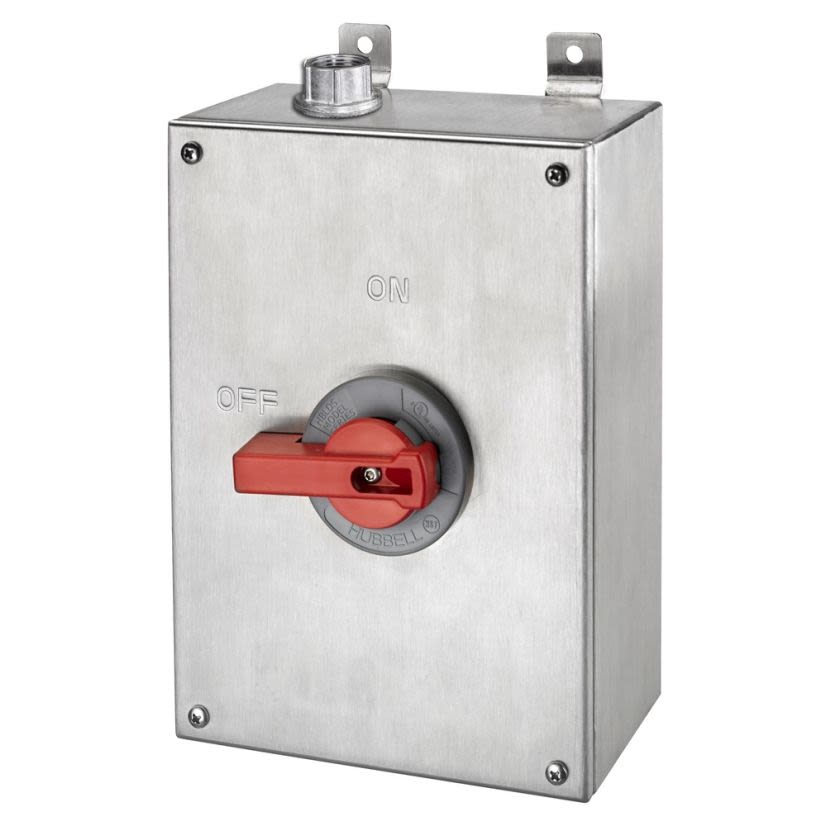

Hubbell Wiring Device-Kellems Circuit-Lock HBLDS6SSVFD Industrial Grade Non-Fusible Square Top Standard Disconnect Switch With AC2 Auxiliary Contacts, 120 V AC, 60 A, 7.5 hp, 2 Poles
Hubbell Wiring Device - Kellems HBLDS6SSVFD
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS6SSVFD Industrial Grade Non-Fusible Square Top Standard Disconnect Switch With AC2 Auxiliary Contacts, 120 V AC, 60 A, 7.5 hp, 2 PolesNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS6SSVFD
Werner Part #3991625
UPC783585372730
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS6SSVFD
Werner Part #3991625
UPC783585372730
Product Description
Hubbell Wiring Device-Kellems Circuit-Lock Disconnect Switch, Industrial Grade Non-Fusible Square Top Standard, 120 V AC, 60 A, 7.5 hp, 1 ph, 60 Hz Frequency, 2 Pole, 65 kA Short Circuit, Snap Actuator, NEMA 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 to 75 deg C, 11.63 x 7.3 x 5.39 in, Composite, Gray
Attributes
Documents
Applications
Features
Attributes
Actuator TypeSnap
ColorGray
Country of OriginPL
Dimensions11.63 x 7.3 x 5.39 in
Enclosure TypeNEMA 4X/IP69K
Frequency Rating60 Hz
Horsepower7.5 hp
ManufacturerHubbell
MaterialComposite
Number of Poles2
Phase1
Short Circuit Current Rating65 kA
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
TypeIndustrial Grade Non-Fusible Square Top Standard
Type / StyleIndustrial Grade Non-Fusible Square Top Standard
Voltage120 VAC
Documents
Applications
For use with variable frequency drives, circuit control, indoor/outdoor applications
Features
- Molded-in conduit opening and field installed hub
- Internal frame automatically bonds all grounds
- Reversible interior accommodates top or bottom conduit opening
