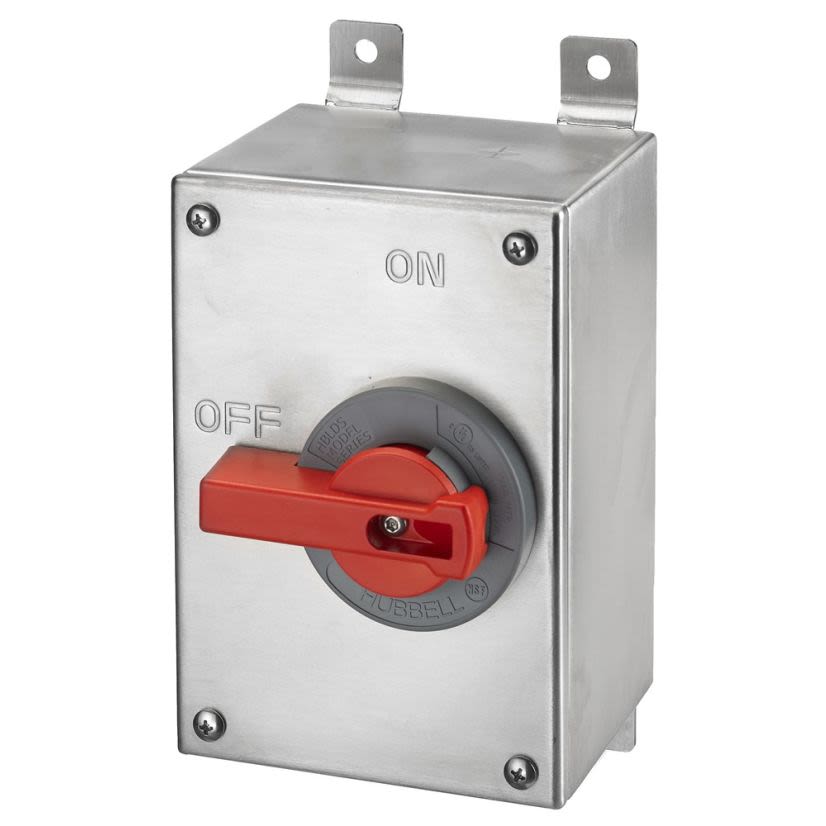

Hubbell Wiring Device - Kellems HBLDS3SSAC
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS3SSAC 2-Position Industrial Grade Square Top Standard Unfused Disconnect Switch, 600 V, 30 A, 15 hp, 2-Position Contact, 3 Poles
Hubbell Wiring Device - Kellems HBLDS3SSAC
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS3SSAC 2-Position Industrial Grade Square Top Standard Unfused Disconnect Switch, 600 V, 30 A, 15 hp, 2-Position Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS3SSAC
Werner Part #3971753
UPC783585242743
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS3SSAC
Werner Part #3971753
UPC783585242743
Product Description
Hubbell Wiring Device-Kellems Circuit-Lock, HBLDS3SSAC, Disconnect Switch, 2-Position Industrial Grade Square Top Standard Unfused, 600 V, 30 A, 15 hp, 3 ph, 60 Hz Frequency, 3 Pole, 65 kA Short Circuit, 2-Position Contact Form, Lever Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 8.38 x 4.87 x 5.39 in Dimensions, Composite
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeLever Operated
ColorBlack
Country of OriginPL
Dimensions8.38 x 4.87 x 5.39 in
Enclosure TypeNEMA 4X
FinishTin Plated
Frequency Rating60 Hz
Horsepower15 hp
ManufacturerHubbell
MaterialComposite
Number of Poles3
Phase3
Primary Connection/Pole1/2-13 x 1-1/16 in Stud
Secondary Connection/Pole1/2-13 x 1-1/16 in Stud
Series163
Short Circuit Current Rating65 kA
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type2-Position Industrial Grade Square Top Standard Unfused
Type / StyleIndustrial Grade Square Top Standard Unfused
Voltage600 VAC
Documents
Applications
Extra Heavy Duty Industrial Applications
Warranty
1 Year
Features
- Highly visible red handle
- Formed in nonporous 304 stainless steel
- Accepts up to 2 Auxiliary contacts
