Hubbell Wiring Device - Kellems HBLDS10SSAC

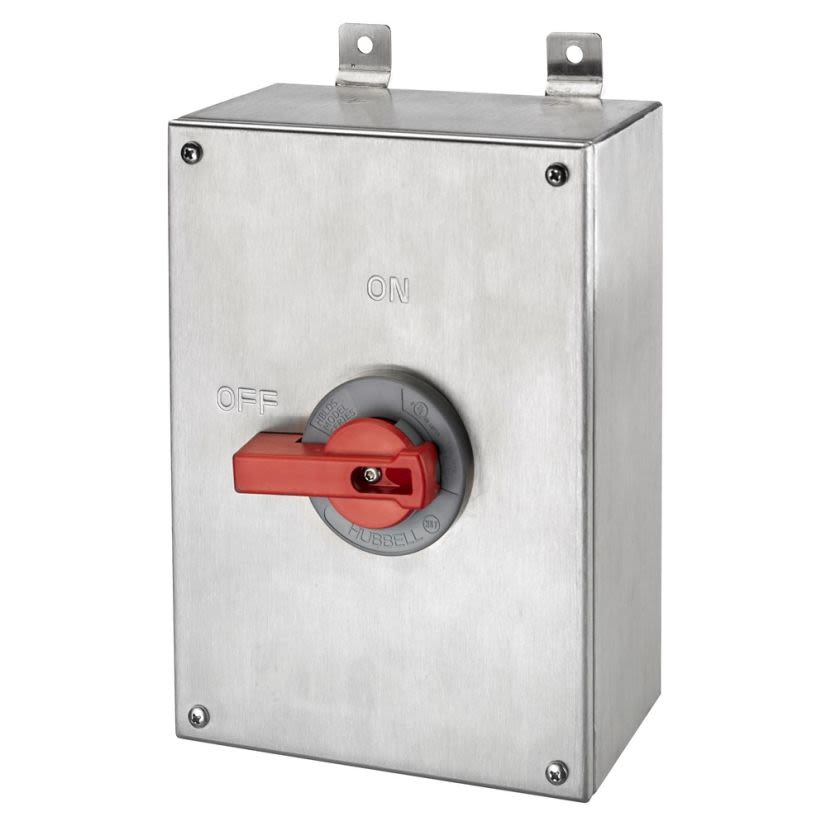

Hubbell Wiring Device-Kellems Circuit-Lock HBLDS10SSAC 2-Position Industrial Grade Square Top Standard Unfused Disconnect Switch With HBLAC1 Auxiliary Contact, 600 V, 100 A, 50 hp, 2-Position Contact, 3 Poles
Hubbell Wiring Device - Kellems HBLDS10SSAC
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS10SSAC 2-Position Industrial Grade Square Top Standard Unfused Disconnect Switch With HBLAC1 Auxiliary Contact, 600 V, 100 A, 50 hp, 2-Position Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS10SSAC
Werner Part #3971756
UPC783585372594
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS10SSAC
Werner Part #3971756
UPC783585372594
Product Description
Hubbell Wiring Device-Kellems Circuit-Lock Disconnect Switch, 2-Position Industrial Grade Square Top Standard Unfused, 600 V, 100 A, 50 hp, 3 ph, 60 Hz Frequency, 3 Pole, 65 kA Short Circuit, 2-Position Contact Form, Lever Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 11.63 x 7.3 x 5.39 in, Composite
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeLever Operated
ColorBlack
Country of OriginPL
Dimensions11.63 x 7.3 x 5.39 in
Enclosure TypeNEMA 4X
FinishTin Plated
Frequency Rating60 Hz
Horsepower50 hp
ManufacturerHubbell
MaterialComposite
Number of Poles3
Package Height7.8 IN
Package Length13.3 in
Package TypeEACH
Package Weight10.5 lb
Package Width9.4 IN
Phase3
Primary Connection/Pole1
Secondary Connection/Pole21
Series163
Short Circuit Current Rating65 kA
Size of Wire6 AWG to 350 kcmil Cu/Al Line, 14 to 10 AWG Cu, 10 AWG Al Load
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type2-Position Industrial Grade Square Top Standard Unfused
Type / StyleIndustrial Grade Square Top Standard Unfused
Voltage600 VAC
Documents
Applications
Extra Heavy Duty Industrial Applications
Warranty
Limited
Features
- Molded-in conduit opening and field installed hub
- Internal frame automatically bonds all grounds
- Reversible interior accommodates top or bottom conduit opening
