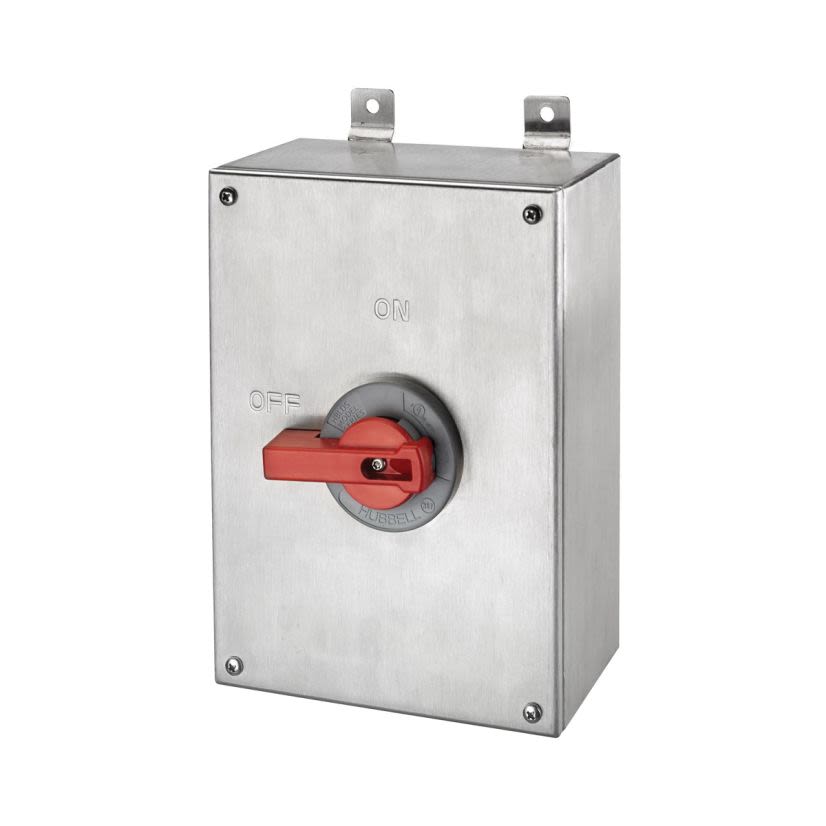

Hubbell Wiring Device - Kellems HBLDS10SS
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS10SS 2-Position Industrial Grade Square Top Standard Unfused Disconnect Switch, 600 V, 100 A, 50 hp, 2-Position Contact, 3 Poles
Hubbell Wiring Device - Kellems HBLDS10SS
Hubbell Wiring Device-Kellems Circuit-Lock HBLDS10SS 2-Position Industrial Grade Square Top Standard Unfused Disconnect Switch, 600 V, 100 A, 50 hp, 2-Position Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS10SS
Werner Part #3976569
UPC783585372587
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBLDS10SS
Werner Part #3976569
UPC783585372587
Product Description
Hubbell Wiring Device-Kellems Circuit-Lock Disconnect Switch, 2-Position Industrial Grade Square Top Standard Unfused, 600 V, 100 A, 50 hp, 3 ph, 60 Hz Frequency, 3 Pole, 65 kA Short Circuit, 2-Position Contact Form, Lever Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 11.63 x 7.3 x 5.39 in, Composite
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeLever Operated
ColorBlack
Country of OriginPL
Dimensions11.63 x 7.3 x 5.39 in
Enclosure TypeNEMA 4X
FinishTin Plated
Frequency Rating60 Hz
Horsepower50 hp
ManufacturerHubbell
MaterialComposite
Number of Poles3
Package TypeEACH
Phase3
Primary Connection/Pole1
Secondary Connection/Pole6
Series163
Short Circuit Current Rating65 kA
Size of Wire6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type2-Position Industrial Grade Square Top Standard Unfused
Type / StyleIndustrial Grade Square Top Standard Unfused
Voltage600 VAC
Documents
Applications
Extra Heavy Duty Industrial Applications
Warranty
Limited
Features
- Molded-in conduit opening and field installed hub
- Internal frame automatically bonds all grounds
- Reversible interior accommodates top or bottom conduit opening
