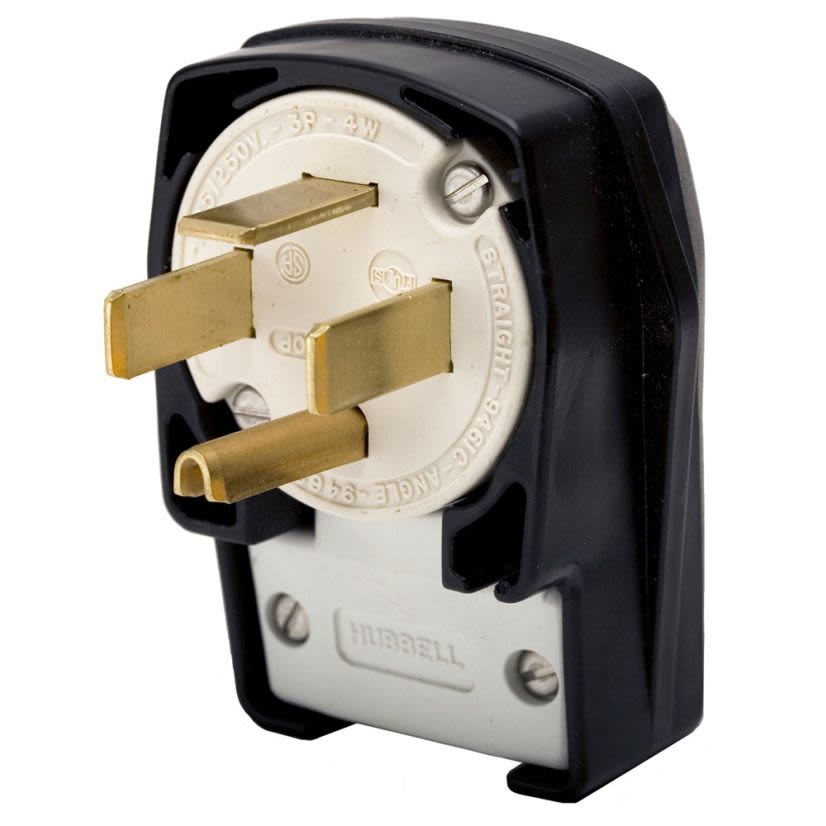

Hubbell Wiring Device - Kellems HBL9462C
Hubbell Wiring Device-Kellems Insulgrip HBL9462C 1-Phase Angle Style Standard Grounding Cord Mount Straight Blade Plug, 125/250 V AC, 60 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems HBL9462C
Hubbell Wiring Device-Kellems Insulgrip HBL9462C 1-Phase Angle Style Standard Grounding Cord Mount Straight Blade Plug, 125/250 V AC, 60 A, 3 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems Insulgrip, HBL9462C, Straight Blade Plug, 1-Phase Angle Style Standard Grounding Cord Mount, 125/250 V AC, 60 A, 3 hp, 3 Pole, 4 Wires, 14-60P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 10.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.38 x 4.5 x 2.37 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions3.38 x 4.5 x 2.37 in
Enclosure TypeIP20
GradeCommercial/Industrial
Horsepower3 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating14-60P
Number of Poles3
Number of Wires4
Package Height3.42 in
Package Length5.2 IN
Package TypeEACH
Package Weight0.38 lb
Package Width3.4 in
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Angle Style Standard Grounding Cord Mount
Type / StyleAngle Style Standard Grounding
Voltage Rating125/250 V AC
Documents
Applications
Industrial, Food Processing, Waste Management, Healthcare, Data Centers and Construction Applications
Warranty
Limited
Features
- Heavy Duty
Specifications
Standards/Approvals: UL 498 File No. E1706|CSA C22.2 No. 42/280|NEMA WD1/WD5
