Hubbell Wiring Device - Kellems HBL9330

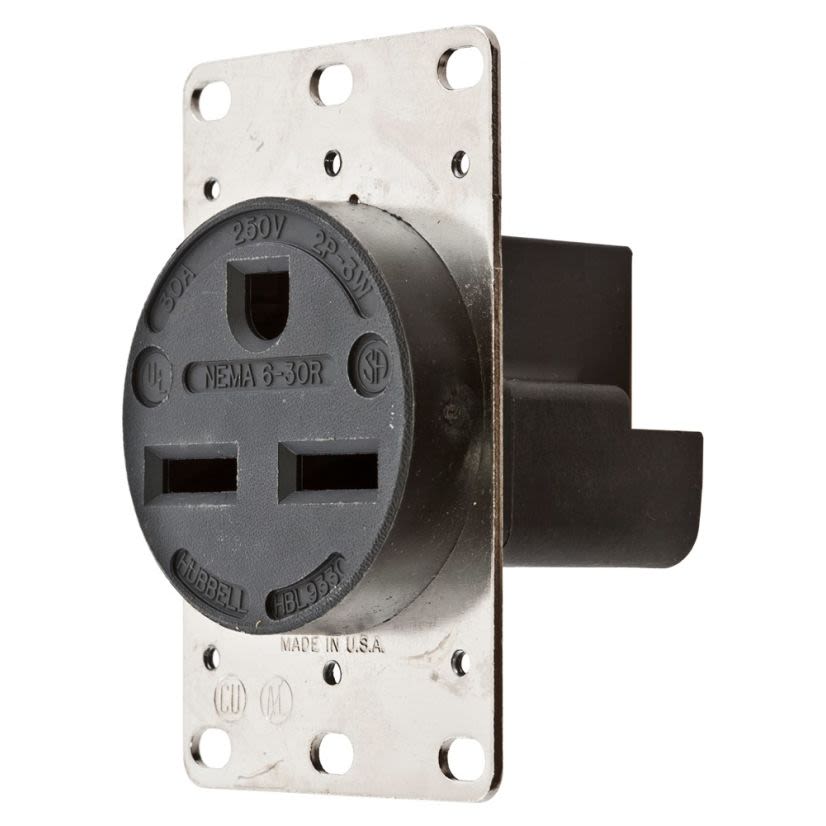

Hubbell Wiring Device-Kellems HBL9330 HBL 1-Phase Grounding Heavy Duty Standard Single Screw Mount Straight Blade Receptacle, 250 V AC, 30 A, 2 Poles, 3 Wires, Black
Hubbell Wiring Device - Kellems HBL9330
Hubbell Wiring Device-Kellems HBL9330 HBL 1-Phase Grounding Heavy Duty Standard Single Screw Mount Straight Blade Receptacle, 250 V AC, 30 A, 2 Poles, 3 Wires, BlackIn Stock: 17more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL9330
Werner Part #39332
UPC783585015231
In Stock: 17more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL9330
Werner Part #39332
UPC783585015231
Product Description
Hubbell Wiring Device-Kellems, HBL9330, Straight Blade Receptacle, 1-Phase Grounding Heavy Duty Standard Single Screw Mount, Series: HBL, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, 6-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Black, 3.28 x 2.25 x 2.23 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions3.28 x 2.25 x 2.23 in
Enclosure TypeIP20
GradeIndustrial
Horsepower2 hp
ManufacturerHubbell
MaterialThermoplastic/Composite
NEMA Rating6-30R
Number of Poles2
Number of Wires3
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeBack and Side Wire/Screw
Type1-Phase Grounding Heavy Duty Standard Single Screw Mount
Type / Style1-Phase Grounding Heavy Duty Standard Single
Voltage Rating250 V AC
Documents
Applications
Dry Location and Indoor Applications
Warranty
Limited
Features
- Sequenced contacts assure protection
- One piece design power and ground contacts
Specifications
Standards/Approvals: UL 498 File No. E2186 Listed|UL 94 V-0 Flammability Rating|CSA Certified|NEMA WD1/WD5
