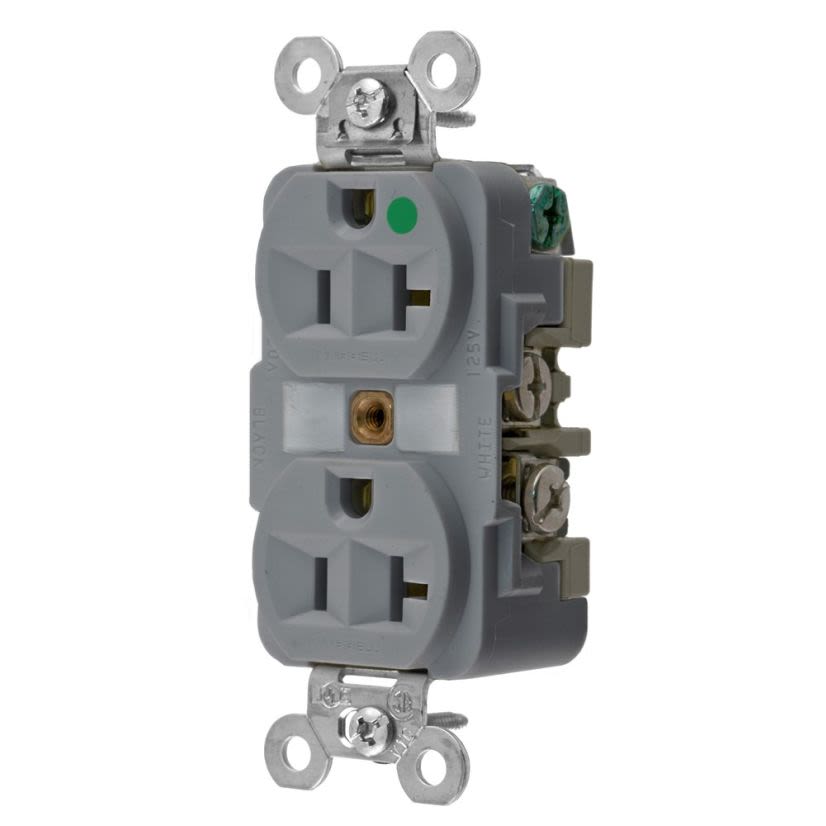

Hubbell Wiring Device - Kellems HBL8300GY

Hubbell Wiring Device-Kellems HBL8300GY 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Receptacle

Hubbell Wiring Device - Kellems HBL8300GY

Hubbell Wiring Device-Kellems HBL8300GY 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray
Non-stock product. Available to order - lead time may vary.

BrandHubbell Wiring Device - Kellems

MFG #HBL8300GY

Werner Part #39302

UPC783585435749

Non-stock product. Available to order - lead time may vary.

BrandHubbell Wiring Device - Kellems

MFG #HBL8300GY

Werner Part #39302

UPC783585435749

Product Description

Hubbell Wiring Device-Kellems, HBL8300GY, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Hospital Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic, Gray, 3.28 x 1.65 x 1.19 in Dimensions
Attributes
ColorGray
Country of OriginUS
Dimensions3.28 x 1.65 x 1.19 in
Enclosure TypeIP20
GradeHospital
Horsepower1 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA Rating5-20R
Number of Poles2
Number of Wires3
Package Height1.54 in
Package Length4.2 IN
Package TypeEACH
Package Weight0.09 lb
Package Width2 in
Temperature Rating-40 to 75 deg C
Terminal TypeBack and Side Wire/Screw
Type1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount
Type / StyleDuplex Extra Heavy Duty Self-Grounding Standard Traditional
Voltage Rating125 V AC
