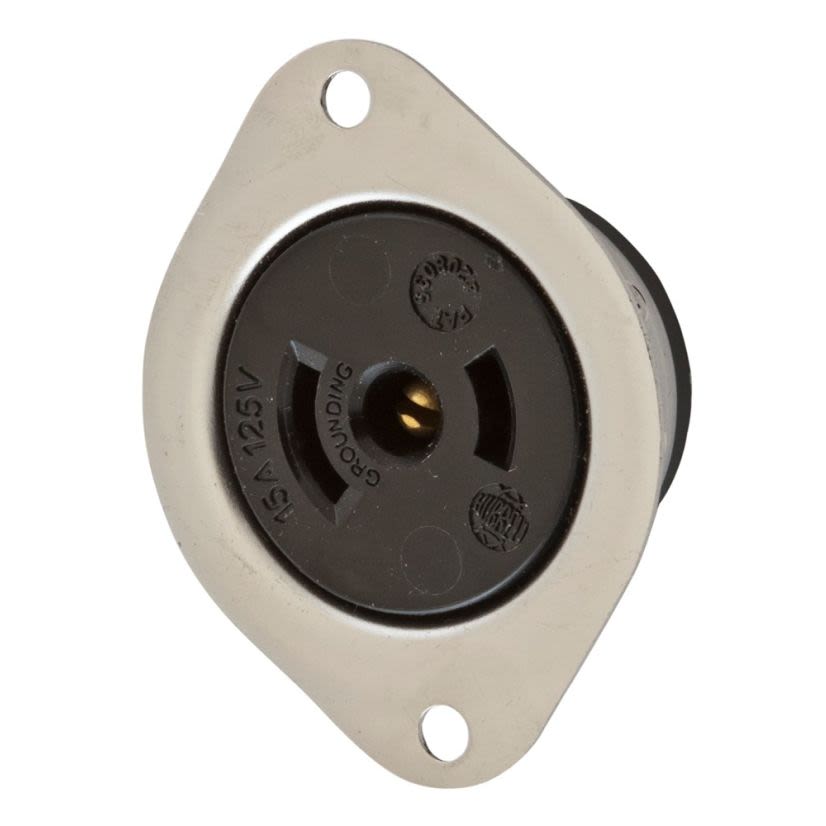

Hubbell Wiring Device - Kellems HBL7596
Hubbell Wiring Device-Kellems Twist-Lock HBL7596 HBL 1-Phase Heavy Duty Grounding Mid Gate Standard Screw Mount Locking Flanged Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Black
Hubbell Wiring Device - Kellems HBL7596
Hubbell Wiring Device-Kellems Twist-Lock HBL7596 HBL 1-Phase Heavy Duty Grounding Mid Gate Standard Screw Mount Locking Flanged Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems Twist-Lock, HBL7596, Locking Flanged Receptacle, 1-Phase Heavy Duty Grounding Mid Gate Standard Screw Mount, Series: HBL, 125 V AC, 15 A, 2 Pole, 3 Wires, ML-2R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.06 x 1.62 x 0.96 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions2.06 x 1.62 x 0.96 in
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingML-2R
Number of Poles2
Number of Wires3
Package Height1.54 in
Package Length2.42 in
Package TypeEACH
Package Weight0.06 lb
Package Width2.45 IN
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Heavy Duty Grounding Mid Gate Standard Screw Mount
Type / Style1-Phase Heavy Duty Grounding Mid Gate Standard
Voltage Rating125 V AC
Documents
Applications
Indoor Dry Environment
Warranty
Limited
Features
- Stainless Steel mounting flange
- High heat resistant phenolic base
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498|CSA C22.2 No. 42|NEMA WD1/WD5
