Hubbell Wiring Device - Kellems HBL7545C

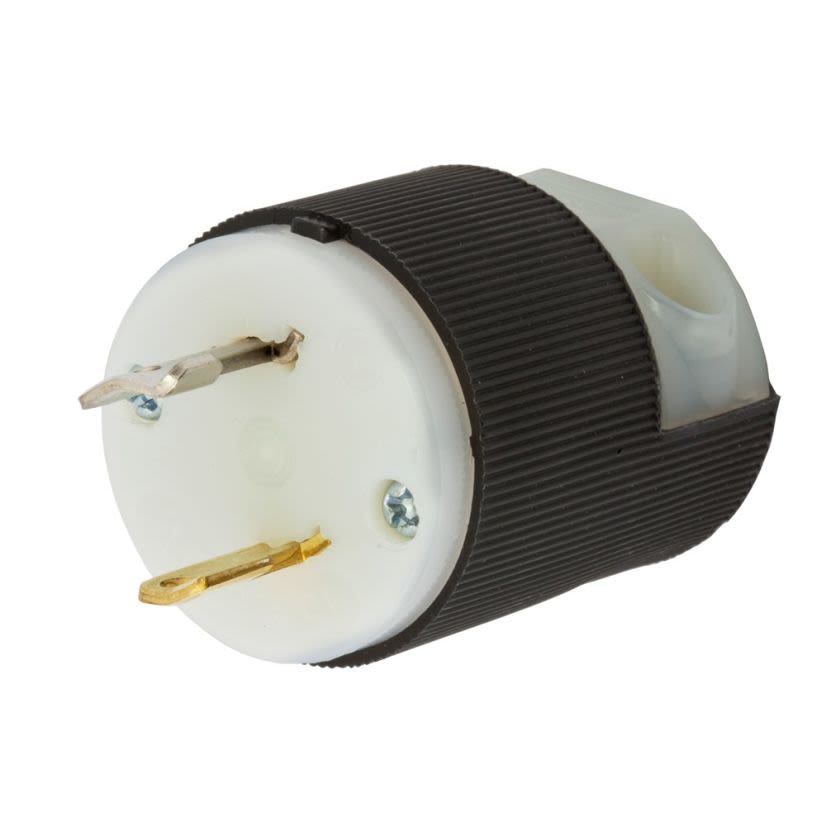

Hubbell Wiring Device-Kellems Twist-Lock HBL7545C Non-Grounding Locking Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Black/White
Hubbell Wiring Device - Kellems HBL7545C
Hubbell Wiring Device-Kellems Twist-Lock HBL7545C Non-Grounding Locking Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL7545C
Werner Part #39258
UPC783585178509
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL7545C
Werner Part #39258
UPC783585178509
Product Description
Twist-Lock® Locking Plug, Non-Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 2 Wires, NEMA L1-15P, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 1.53 in Dia x 1.91 in L Dimensions
Attributes
Documents
Features
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions1.96 x 1.52 x 1.52 in
Enclosure TypeIP20
GradeIndustrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialComposite
NEMA RatingL1-15P
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Non-Grounding Cord Mount
Type / StylePlug
Voltage Rating125 VAC
Documents
Features
Withstands 2000 VAC dielectric voltage14 AWG wire10 to 8 AWG stranded copper wire terminal accommodationMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseCertified for current interrupting at full rated current interruptingTerminals identified in accordance with UL 498#8-32 brass (Phillips/slotted/Robertson) terminal screwClear polycarbonate terminal retainerIndoor dry unless protected by additional means
