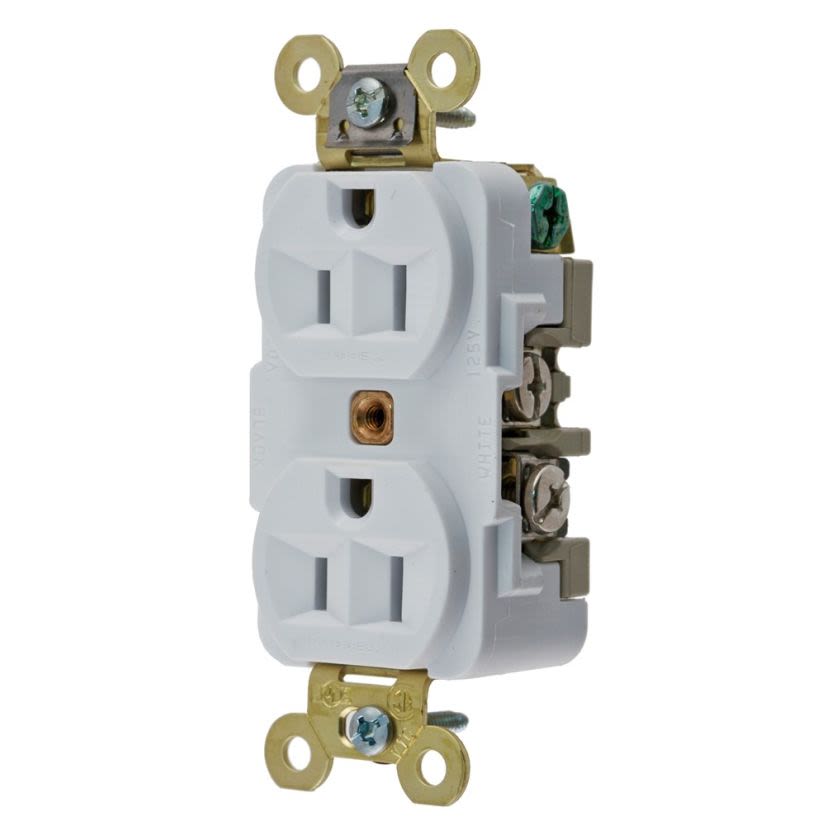

Hubbell Wiring Device - Kellems HBL5262W
Hubbell Wiring Device-Kellems HBL5262W HBL 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems HBL5262W
Hubbell Wiring Device-Kellems HBL5262W HBL 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL5262W, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount, Series: HBL, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Hospital Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, White, 3.28 x 1.65 x 1.19 in Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions3.28 x 1.65 x 1.19 in
GradeHospital
Horsepower1/2 hp
ManufacturerHubbell
MaterialThermoplastic/Composite
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Package Height1.54 in
Package Length4.2 in
Package TypeEACH
Package Weight0.25 lb
Package Width1.8 IN
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount
Type / StyleDuplex Extra Heavy Duty Self-Grounding
Voltage Rating125 V AC
Documents
Features
- Back wired ground terminal allows faster, easier installation
- One-piece brass integral ground strap
- Deep body design with circuit ID face
Specifications
Standards/Approvals: UL 498, File No. E2186 Listed, UL 94-V-2, UL 94 V-0 Flammability Rating|CSA 22.2 No. 42, 285| NEMA WD1/WD5
