Hubbell Wiring Device - Kellems HBL5251

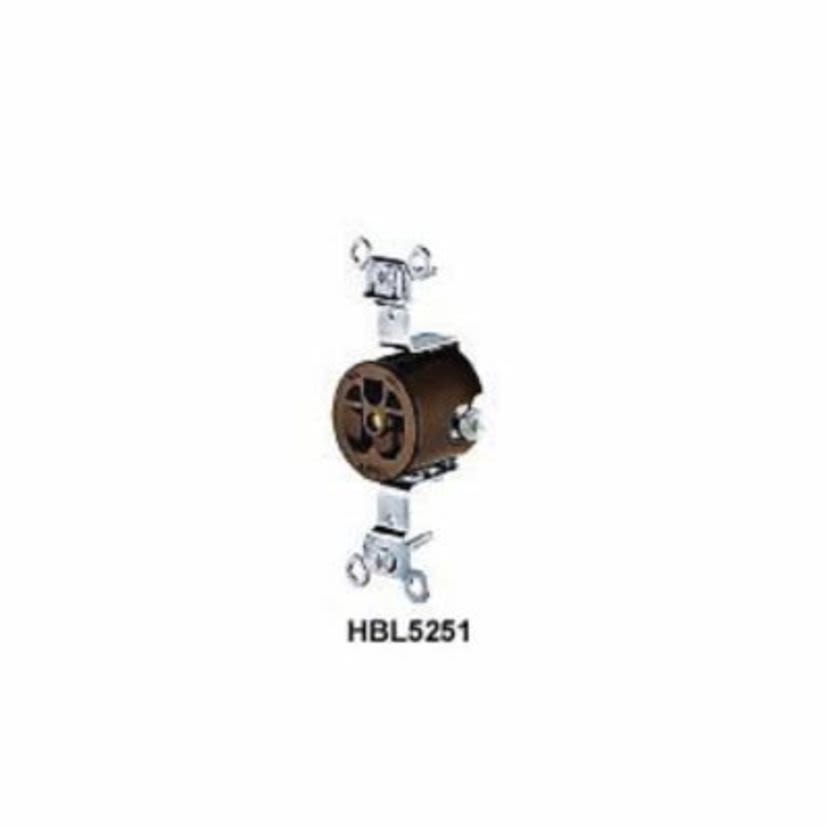

Hubbell HBL HBL5251 Standard Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown
Hubbell Wiring Device - Kellems HBL5251
Hubbell HBL HBL5251 Standard Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, BrownNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5251
Werner Part #39125
UPC783585013817
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5251
Werner Part #39125
UPC783585013817
Product Description
Hubbell HBL Straight Blade Receptacle, Standard, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Heavy Duty/Specification Grade, -40 to 75 deg C, Side Wire Terminal, Nylon, Brown, 3.28 in H x 0.92 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBrown
Country of OriginUS
Dimensions3.28 in H x 0.92 in D
GradeHeavy Duty/Specification
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package Length4.1 IN
Package Weight0.1 lb
Package Width1.8 IN
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wire
TypeStandard
Type / StyleSTANDARD
Voltage Rating125 V AC
Documents
Features
- Slender/compact design
- Triple wipe contacts
Specifications
Standards/Approvals: CSA 22.2 NO 42|Federal Specification W-C-596G|UL E2186/498
