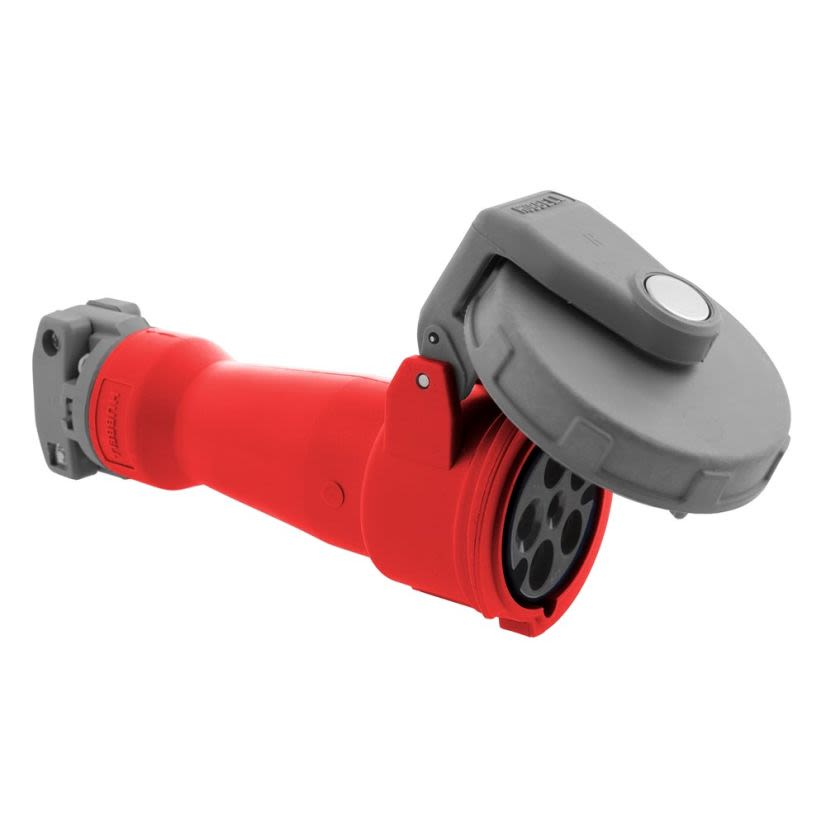

Hubbell Wiring Device - Kellems HBL5100C7W
Hubbell Wiring Device-Kellems HBL5100C7W Female Grounding Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 277/480Y V AC, 100 A, 4 Poles, 5 Wires, Red
Hubbell Wiring Device - Kellems HBL5100C7W
Hubbell Wiring Device-Kellems HBL5100C7W Female Grounding Insulated Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Connector, 277/480Y V AC, 100 A, 4 Poles, 5 Wires, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL5100C7W, Pin and Sleeve Connector, Female Grounding Insulated Non-NEMA Standard Watertight Cord Mount, 277/480Y V AC, 100 A, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 5.71 in Dia x 13.57 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions5.71 in Dia x 13.57 in L
Enclosure TypeIP67
GradeIndustrial
ManufacturerHubbell
MaterialComposite
NEMA RatingNon-NEMA
Number of Poles4
Number of Wires5
Package Height5.25 in
Package Length14 in
Package TypeEACH
Package Weight5 lb
Package Width6.1 in
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
TypeFemale Grounding Insulated Non-NEMA Standard Watertight Cord Mount
Type / StyleFemale Grounding Insulated Non-NEMA Standard Watertight
Voltage Rating277/480Y V AC
Documents
Applications
High Ampacity Connections Applications
Warranty
Limited
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
Specifications
Standards/Approvals: UL 498|UL 1682|UL 1686C2 File No. E146033|IEC 309-1/309-2|CSA File No. LR280C
