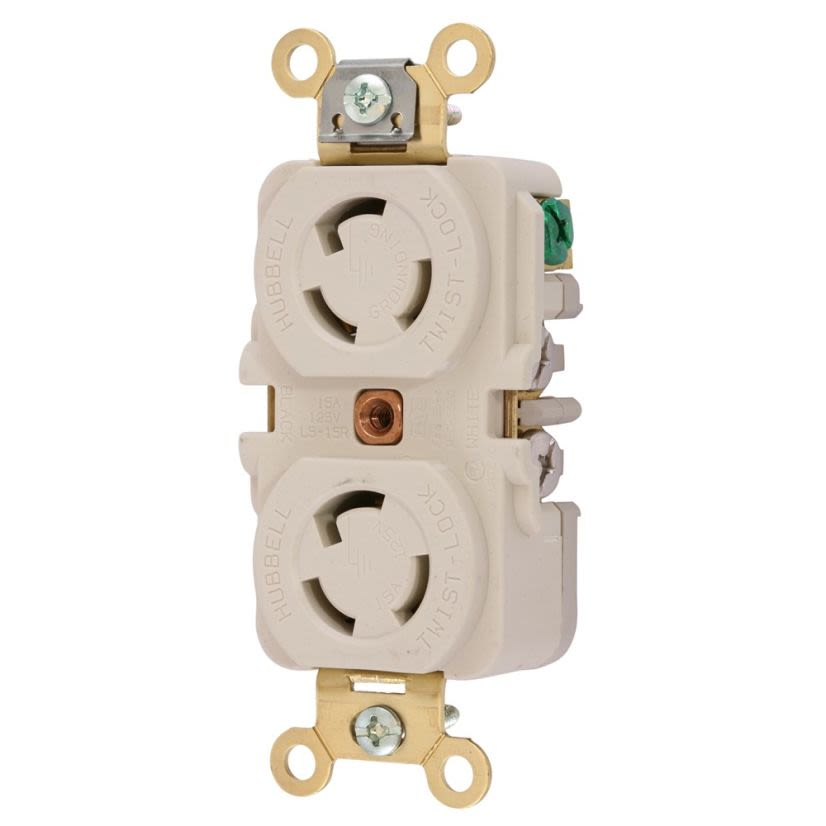

Hubbell Wiring Device - Kellems HBL4700I
Hubbell Wiring Device-Kellems HBL4700I 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount Locking Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Hubbell Wiring Device - Kellems HBL4700I
Hubbell Wiring Device-Kellems HBL4700I 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount Locking Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, IvoryNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL4700I, Locking Receptacle, 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, L5-15R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Ivory, 3.29 x 1.7 x 1.17 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginPR
Dimensions3.29 x 1.7 x 1.17 in
Enclosure TypeNEMA 4X/12/IP20
GradeIndustrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingL5-15R
Number of Poles2
Number of Wires3
Package Height1.54 in
Package Length4.3 in
Package TypeEACH
Package Weight0.3 lb
Package Width1.8 IN
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount
Type / StyleHeavy Duty Duplex Grounding Standard Traditional
Voltage Rating125 V AC
Documents
Applications
Dry Locations and Indoor Applications
Warranty
Limited
Features
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 94|UL 498|CSA 22.2 No. 42/0.17|UL94HB Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5
