Hubbell Wiring Device - Kellems HBL4100P7WR

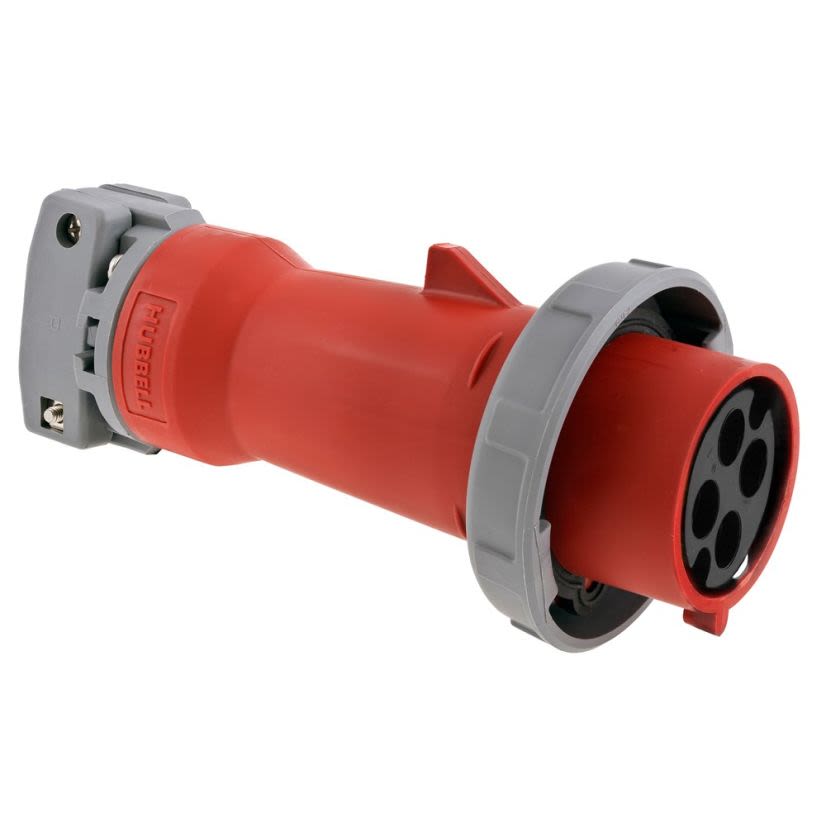

Hubbell Wiring Device-Kellems Circuit-Lock HBL4100P7WR 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Mating Plug, 480 VAC, 100 A, 3 Poles, 4 Wires, Red
Hubbell Wiring Device - Kellems HBL4100P7WR
Hubbell Wiring Device-Kellems Circuit-Lock HBL4100P7WR 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Mating Plug, 480 VAC, 100 A, 3 Poles, 4 Wires, RedNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL4100P7WR
Werner Part #3942411
UPC783585012780
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL4100P7WR
Werner Part #3942411
UPC783585012780
Product Description
Wiring Device-Kellems Circuit-Lock® Mating Plug, 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight, 480 VAC, 100 A, 3 Pole, 4 Wires, NEMA 4X/12 NEMA Rating, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 4.92 in Dia x 12.63 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Country of OriginUnited States
Dimensions4.92 in Dia x 12.63 in L
Enclosure TypeIP67
GradeIndustrial
ManufacturerHubbell
MaterialComposite
NEMA Rating4X/12
Number of Poles3
Number of Wires4
Package TypeEACH
Terminal TypePressure Screw
Type3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount
Type / Style3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight
Voltage Rating480 VAC
Documents
Features
Gasketed sealing ring provides watertight seal
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E146032|CSA C22.2 File No. 182.1|IEC 60309-1|IEC 60309-2|UL 498
