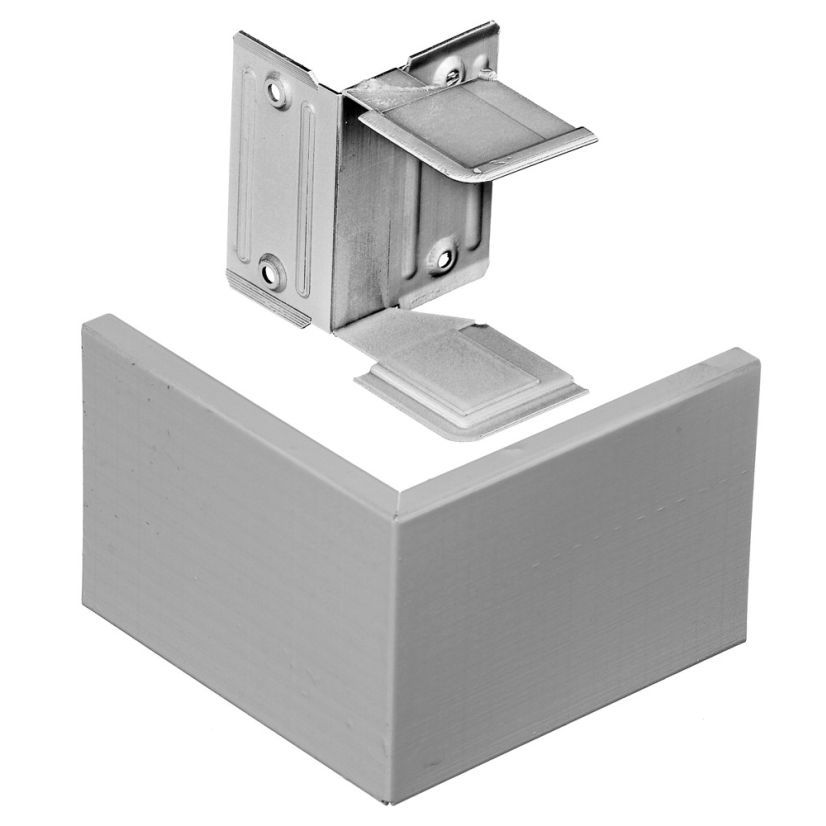

Hubbell Wiring Device - Kellems HBL3018AEGY
Hubbell Wiring Device-Kellems HBL3018AEGY HBL3000 External Corner Standard Coupling, For Use With HBL3000 Series Metal Raceway, Roll Formed Steel, Painted
Hubbell Wiring Device - Kellems HBL3018AEGY
Hubbell Wiring Device-Kellems HBL3018AEGY HBL3000 External Corner Standard Coupling, For Use With HBL3000 Series Metal Raceway, Roll Formed Steel, PaintedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems, HBL3018AEGY, Coupling, External Corner Standard, Series: HBL3000, For Use With: HBL3000 Series Metal Raceway, Roll Formed Steel, Painted, Gray, 4.3 in L x 4.2 in W x 3.2 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorGray
Country of OriginUS
Dimensions4.3 in L x 4.2 in W x 3.2 in H
FinishPainted
ManufacturerHubbell
MaterialRoll Formed Steel
Package Length4.3 in
Package TypeEACH
Package Weight1.1 lb
Package Width4.2 IN
SeriesHBL3000
Suitable For Use WithHBL3000 Series Metal Raceway
TypeExternal Corner Standard
Type / StyleExternal Corner Standard
Documents
Applications
For right angle turns around external corners and non-hazardous locations
Warranty
Limited
Features
- Without knockouts
- Wide range of covers and cover plates accommodate the most demanding applications
- Removable cover and cover plates provide easy access to wiring compartment
- Pre-cut covers and plates provide quick installation
- Transition fitting UL classified to transition from Wiremold 3000 series metal raceway to Hubbell HBL3000 series metal raceway
- Hubbell Handi-Screw eliminates difficult to install long screws for faster mounting
- Round corner boxes eliminate sharp edges
- Boxes have a 1-seam construction providing a clean look
- Large capacity boxes allows for the installation of 30, 50 or 60 A receptacles
- Utility box can be used as a tee, cross, junction box or as a branch circuit extension
- 3.7 sq-in nominal cross section
- Scratch resistant finish
