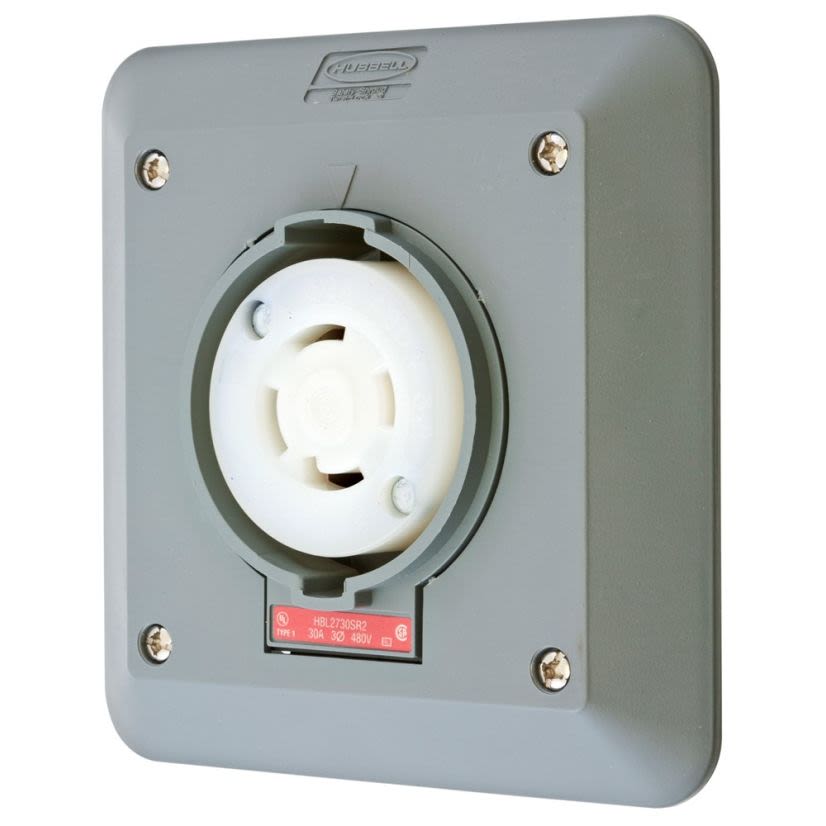

Hubbell Wiring Device - Kellems HBL2730SR2
Hubbell Wiring Device-Kellems Safety-Shroud Twist-Lock HBL2730SR2 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Gray/White
Hubbell Wiring Device - Kellems HBL2730SR2
Hubbell Wiring Device-Kellems Safety-Shroud Twist-Lock HBL2730SR2 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Gray/WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems Safety-Shroud Twist-Lock, HBL2730SR2, Locking Receptacle, 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, L16-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Valox Gray/White, 5.12 x 5.12 x 2.22 in Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray/White
Country of OriginUS
Dimensions5.12 x 5.12 x 2.22 in
Enclosure TypeIP20
GradeIndustrial
Horsepower10 hp
ManufacturerHubbell
MaterialValox
NEMA RatingL16-30R
Number of Poles3
Number of Wires4
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount
Type / Style2-Gang Heavy Duty Grounding Standard Single Semi-Flush
Voltage Rating480 V AC
Documents
Applications
Dry Locations and Indoor Applications
Features
- Accepts Hubbell shrouded and standard NEMA locking plugs
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5
