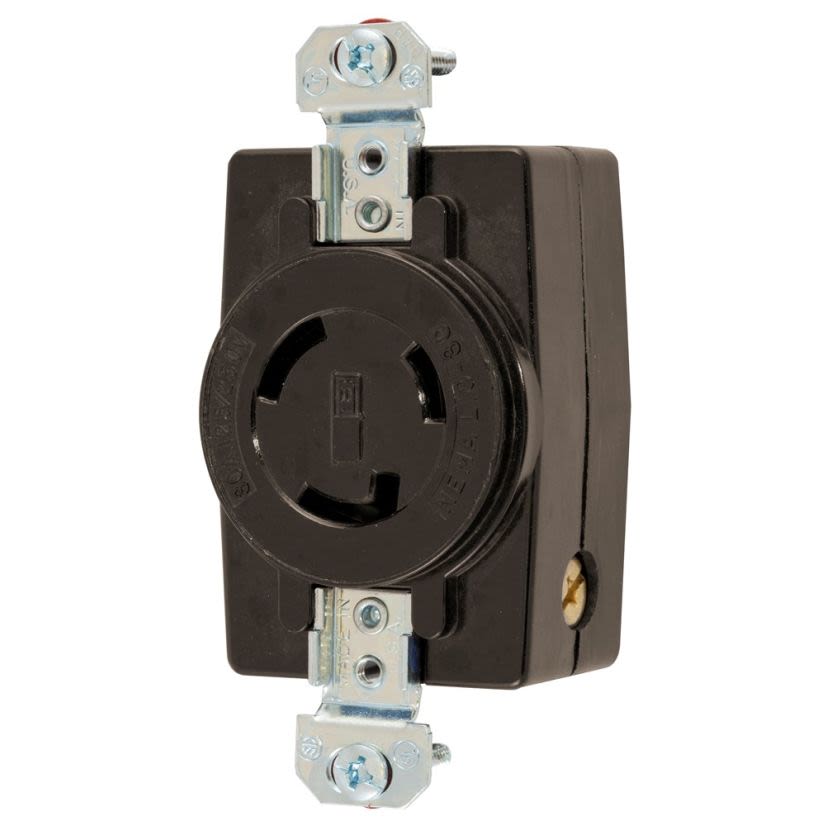

Hubbell Wiring Device - Kellems HBL2660
Hubbell Wiring Device-Kellems Twist-Lock HBL2660 1-Phase Heavy Duty Standard Single Screw Mount Locking Receptacle, 125/250 V AC, 30 A, 3 Poles, 3 Wires, Black
Hubbell Wiring Device - Kellems HBL2660
Hubbell Wiring Device-Kellems Twist-Lock HBL2660 1-Phase Heavy Duty Standard Single Screw Mount Locking Receptacle, 125/250 V AC, 30 A, 3 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2660
Werner Part #4021102
UPC783585456775
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2660
Werner Part #4021102
UPC783585456775
Product Description
Hubbell Wiring Device-Kellems Twist-Lock, HBL2660, Locking Receptacle, 1-Phase Heavy Duty Standard Single Screw Mount, 125/250 V AC, 30 A, 3 Pole, 3 Wires, L10-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingL10-30R
Number of Poles3
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Heavy Duty Standard Single Screw Mount
Type / StyleHeavy Duty Standard Single
Voltage Rating125/250 V AC
Documents
Applications
Dry Locations and Indoor Applications
Warranty
Limited
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|UL 94|UL 498|CSA 22.2 No. 42/0.17|UL94 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5
