Hubbell Wiring Device - Kellems HBL2430

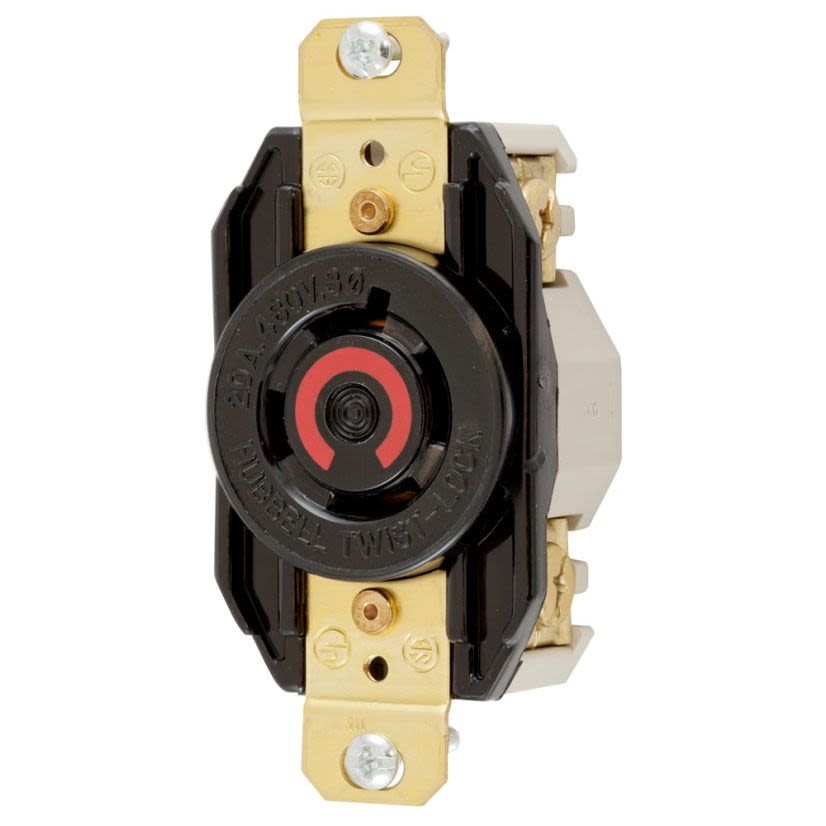

Hubbell Wiring Device-Kellems Twist-Lock HBL2430 HBL 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems HBL2430
Hubbell Wiring Device-Kellems Twist-Lock HBL2430 HBL 3-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 3 Poles, 4 Wires, BlackIn Stock: 43more info
|
In Stock: 43more info
|
Product Description
Hubbell Wiring Device-Kellems Twist-Lock, HBL2430, Locking Receptacle, 3-Phase Heavy Duty Single Screw Mount, Series: HBL, 480 V AC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Black, 3.28 x 1.7 x 1.23 in Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Dimensions3.28 x 1.7 x 1.23 in
Enclosure TypeIP20
GradeIndustrial
Horsepower5 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL16-20R
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Heavy Duty Single Screw Mount
Type / StyleHeavy Duty Single
Voltage Rating480 V AC
Documents
Features
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Specifications
Standards/Approvals: UL 498| Federal Specification W-C-596|CSA C22.2 No. 42| NEMA WD1/WD5
