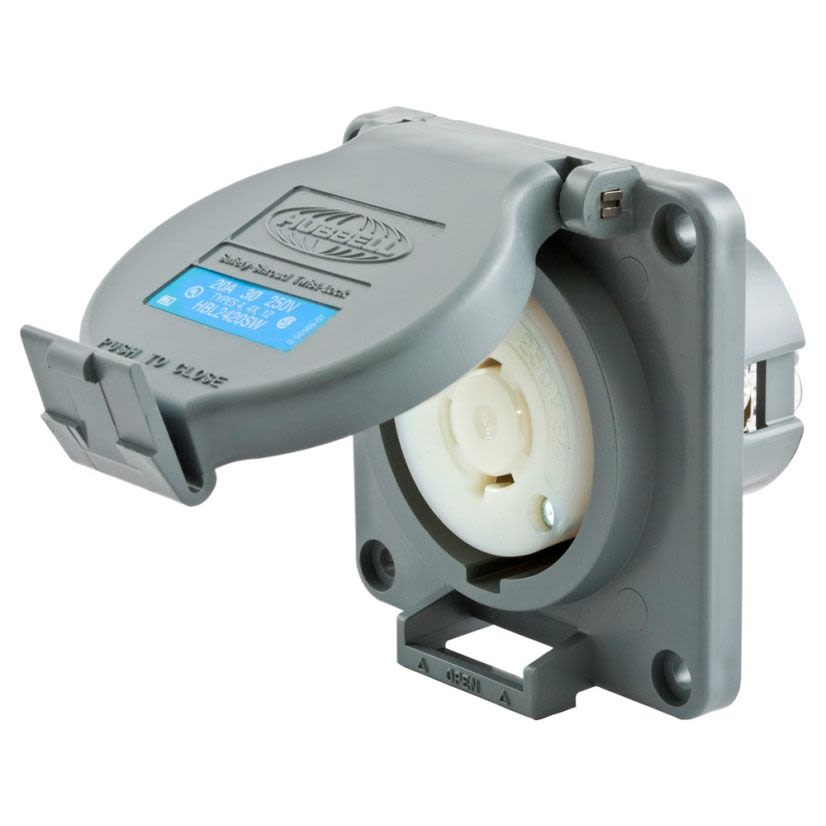

Hubbell Wiring Device - Kellems HBL2420SW

Hubbell Wiring Device-Kellems HBL2420SW HBL 3-Phase Grounding Heavy Duty Watertight Single Screw Mount Locking Receptacle, 250 V AC, 20 A, 3 Poles, 4 Wires, Gray/White
Receptacle

Hubbell Wiring Device - Kellems HBL2420SW

Hubbell Wiring Device-Kellems HBL2420SW HBL 3-Phase Grounding Heavy Duty Watertight Single Screw Mount Locking Receptacle, 250 V AC, 20 A, 3 Poles, 4 Wires, Gray/White
Non-stock product. Available to order - lead time may vary.

BrandHubbell Wiring Device - Kellems

MFG #HBL2420SW

Werner Part #599407

UPC783585231341

Non-stock product. Available to order - lead time may vary.

BrandHubbell Wiring Device - Kellems

MFG #HBL2420SW

Werner Part #599407

UPC783585231341

Product Description

Hubbell Wiring Device-Kellems, HBL2420SW, Locking Receptacle, 3-Phase Grounding Heavy Duty Watertight Single Screw Mount, Series: HBL, 250 V AC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 3.75 x 3.75 x 2.9 in Dimensions
Attributes
ColorGray/White
Country of OriginUS
Dimensions3.75 x 3.75 x 2.9 in
Enclosure TypeNEMA 4/4X/12/IP66
GradeIndustrial
Horsepower3 hp
ManufacturerHubbell
MaterialThermoplastic
NEMA RatingL15-20R
Number of Poles3
Number of Wires4
Package Height4.2 in
Package Length3.9 in
Package TypeEACH
Package Weight0.33 lb
Package Width3.3 in
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Grounding Heavy Duty Watertight Single Screw Mount
Type / StyleGrounding Heavy Duty Safety Shroud Watertight Single
Voltage Rating250 V AC
