Hubbell Wiring Device - Kellems HBL20445B

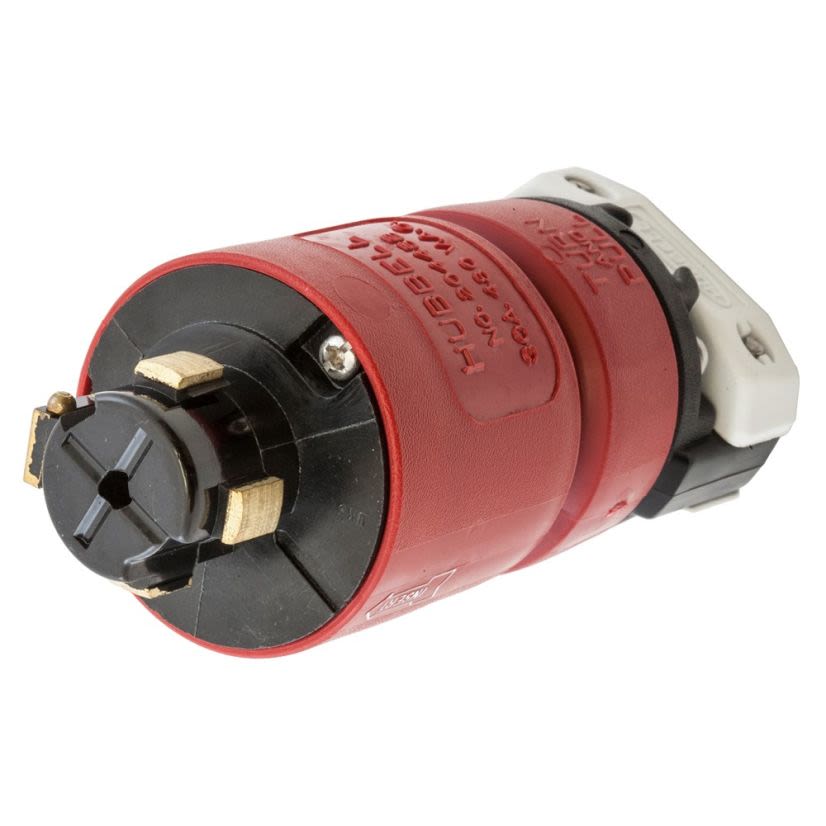

Hubbell Wiring Device-Kellems Hubbellock HBL20445B Grounding Heavy Duty Male Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
Hubbell Wiring Device - Kellems HBL20445B
Hubbell Wiring Device-Kellems Hubbellock HBL20445B Grounding Heavy Duty Male Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, RedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Wiring Device-Kellems Hubbellock® Locking Plug, Grounding Heavy Duty Male, 480 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, 0.63 to 1.2 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 2-21/64 in Dia x 5-5/8 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.33 x 0.94 x 5.63 in
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingNON-NEMA
Number of Poles3
Number of Wires4
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type3-Phase Grounding Heavy Duty Male Cord Mount
Type / StyleGrounding Heavy Duty Male
Voltage Rating480 VAC
Documents
Features
Black thermoset blade holderGlass reinforced PET cord clampBrass bladeCopper lug terminals with steel set screws terminal screw and ground screwStainless steel, multi-drive cord clamp screw, body holding screwWithstands 2000 VAC dielectric voltageCertified for current interrupting at full rated currentMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseRound portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation10 AWG terminal accommodationIP20 moisture resistanceMolded male contacts are resistant to damage and provide a consistently positive connectionInsulated non-metallic housing enhances safety and abuse resistanceBox terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilityThree-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dustAuto ejects improperly made connection
Specifications
Standards/Approvals: UL 498|CSA Certified
