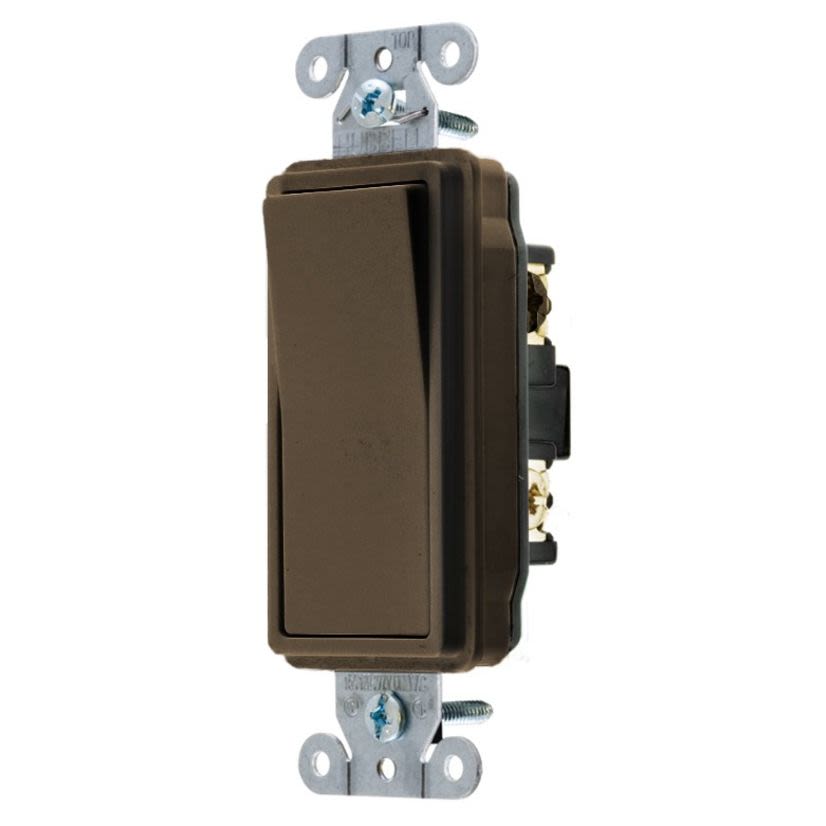

Hubbell Wiring Device - Kellems DS315
Hubbell Wiring Device-Kellems StyleLine DS315 3-Way Heavy Duty Specification Grade Standard Sized Decorator Switch, 120/277 VAC, 15 A, 4155 W, 1/2 to 2 hp Power Rating, 2-Position Contact
Hubbell Wiring Device - Kellems DS315
Hubbell Wiring Device-Kellems StyleLine DS315 3-Way Heavy Duty Specification Grade Standard Sized Decorator Switch, 120/277 VAC, 15 A, 4155 W, 1/2 to 2 hp Power Rating, 2-Position ContactNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DS315
Werner Part #3817664
UPC783585151274
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DS315
Werner Part #3817664
UPC783585151274
Product Description
Wiring Device-Kellems StyleLine® Decorator Switch, 3-Way Heavy Duty Specification Grade Standard Sized, 120/277 VAC, 15 A, 4155 W, 1/2 to 2 hp, 2-Position, 1 Poles, Positive Snap, Rocker, NEMA WD-1 Enclosure, Threaded, Back/Side Wired Screw Terminal, 50000 Cycles Operating Cycles, Composite, Brown, Environmental Conditions: -40 to 75 deg C Operating Temperature, Indoor Dry Unless Protected By Additional Means, 3.91 in H x 1.41 in W x 1.01 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeRocker
ColorBrown
Country of OriginChina
Dimensions3.91 x 1.41 x 1.01 in
Electrical Ratings4155 W
Enclosure TypeNEMA WD-1
ManufacturerHubbell
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles1
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Way Heavy Duty Specification Grade Standard Sized
Type / Style3-Way Heavy Duty Specification Grade Standard Sized
Voltage Rating120 to 277 VAC
Documents
Features
Automatic self-grounding stapleSteel, zinc plated bridge is corrosion resistantThread cleaning captive mounting screwEngineered thermoplastic housing is impact resistant for heavy duty commercial environmentsStainless steel automatic grounding staple assures grounding continuity between mounting strap and metal wall boxOne piece bridge with integral grounding terminal with #8 brass screw allows compliance to NECSteel zinc plated mounting strap provides protection against corrosionProminent amperage marking on mounting strap allows easy identification of ratingBack wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailingLarge brass binding head screws with deep slots secure wire connectionsStrip gauge for accurate wiringHeavy duty nylon toggle resists abuse and chemical attack making it suitable for use in the toughest environmentsElastomer rocker assures quiet operation and precise timingPermanently lubricated assembly provides long life and trouble free operationCopper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat riseSilver alloy contacts reduce contact erosion and prevent welding, providing long lifeStandard product
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL 20|UL94 V-2 Flammability Rating
