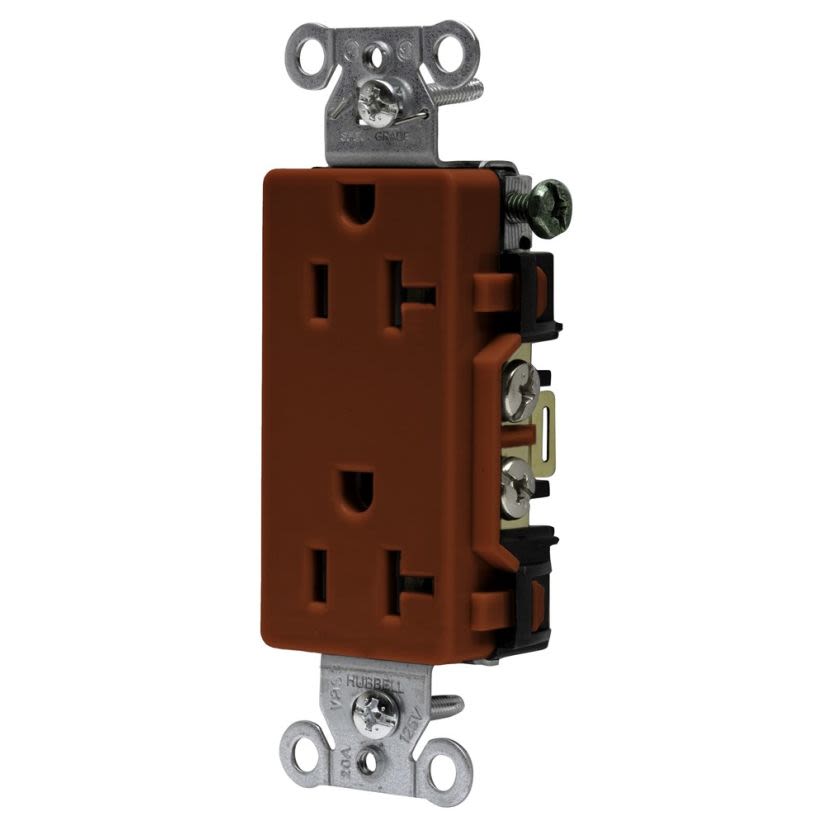

Hubbell Wiring Device - Kellems DR20R
Hubbell Wiring Device-Kellems Style Line DR20R 1-Phase Decorator Duplex Self-Grounding Standard Smooth Face Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
Hubbell Wiring Device - Kellems DR20R
Hubbell Wiring Device-Kellems Style Line DR20R 1-Phase Decorator Duplex Self-Grounding Standard Smooth Face Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, RedNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DR20R
Werner Part #3972993
UPC783585197593
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DR20R
Werner Part #3972993
UPC783585197593
Product Description
Hubbell Wiring Device-Kellems Style Line, DR20R, Straight Blade Receptacle, 1-Phase Decorator Duplex Self-Grounding Standard Smooth Face Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Red, 3.28 x 1.06 x 1.29 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginCN
Dimensions3.28 x 1.06 x 1.29 in
GradeCommercial/Specification
Horsepower1 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Decorator Duplex Self-Grounding Standard Smooth Face Screw Mount
Type / Style1-Phase Decorator Duplex Self-Grounding Standard Smooth Face
Voltage Rating125 V AC
Applications
Dry Indoor Applications
Warranty
Limited
Features
- Triple wipe contacts
- Smooth face
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|UL 498 File No. E2186|CSA C22.2 No. 42|NEMA WD1/WD5
