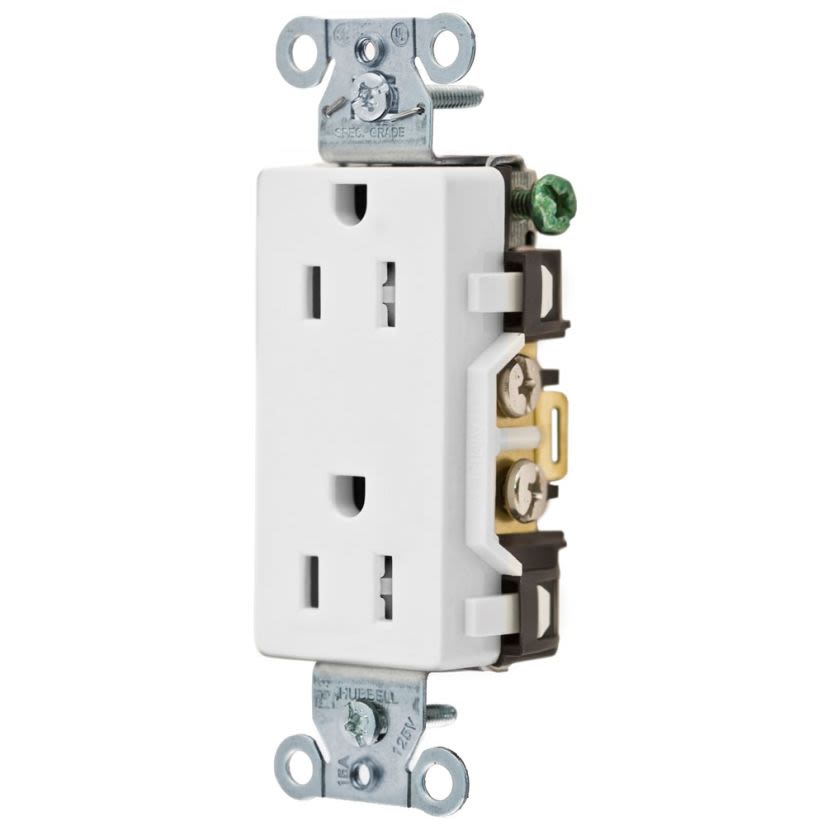

Hubbell Wiring Device - Kellems DR15WHITR
Hubbell Wiring Device-Kellems Style Line DR15WHITR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems DR15WHITR
Hubbell Wiring Device-Kellems Style Line DR15WHITR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Hubbell Wiring Device-Kellems Style Line, DR15WHITR, Straight Blade Receptacle, 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.56 x 1.14 x 3.28 in Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions1.56 x 1.14 x 3.28 in
GradeCommercial/Specification
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount
Type / Style1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant
Voltage Rating125 V AC
Documents
Applications
Washdown Area, Transit Center, Amusement Park, Open Air Market and Dry Indoor Applications
Features
- Smooth face
- Triple wipe contacts
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 498|CSA C22.2 No. 42|Federal Specification W-C-596|NEMA WD1/WD5
